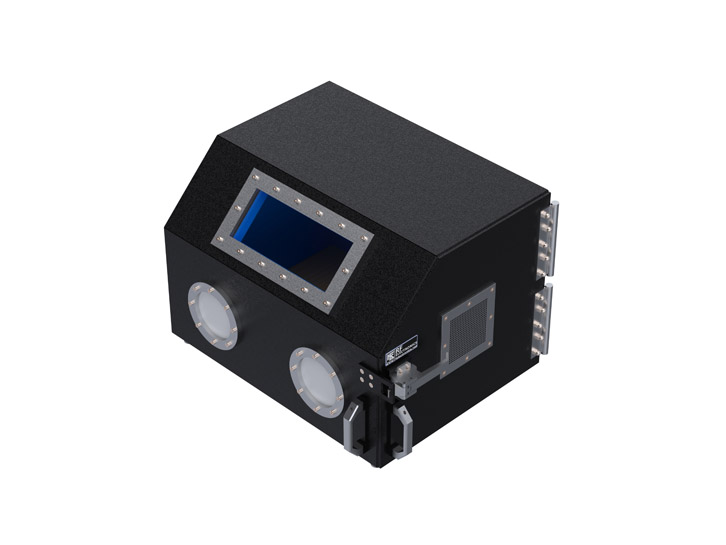

HDRF-1557-G | Benchtop/Desktop Shield Box

Benchtop RF Shield Box for Wireless Testing

Desktop / Benchtop RF Shield Box. It is designed for digital forensic investigations , WLAN , wireless device testing. It supports 802.11a, b, g, n, ac , ax, be. It also supports Bluetooth, RFID, 3G and 5G Device testing.

Let's Connect

Contact us for sales and pricing information.

Free Consultation

Add to Inquiry

Product Specifications

Internal Dimensions

Width: 345 MM, Height: 330 MM, Depth : 500 MM

External Dimensions

Width: 436 MM, Height: 390 MM, Depth : 565 MM

Features of HDRF-1557-G

Designed and developed for WLAN and wireless device testing.
Supports 802.11a/b/g/n/ac/ax/be devices.
Also suited to Bluetooth, RFID, 3G and 5G device testing.

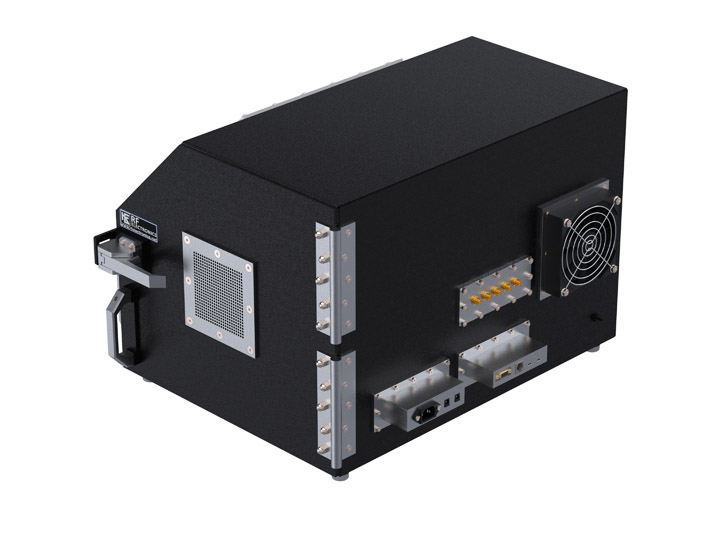

Wide range of I/O connector options — simplifying how power, control and RF signal lines are routed through the enclosure.

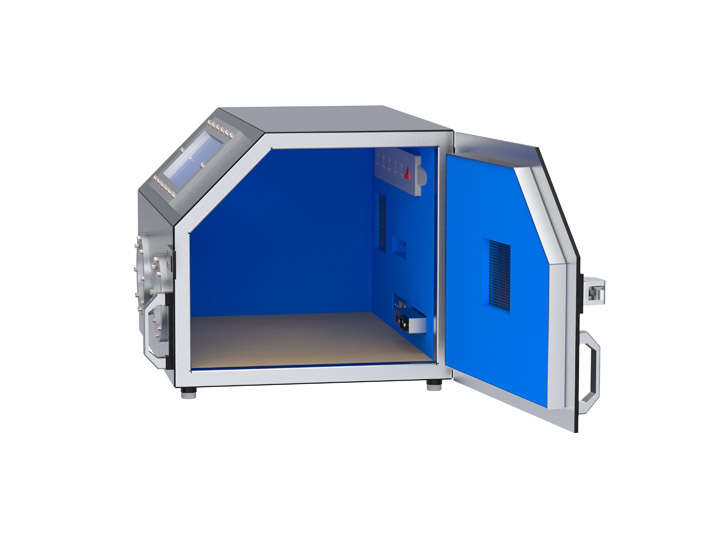

Thick RF absorbing foam deadens standing waves and reflections — helping deaden standing waves and internal reflections for more consistent test results.
Higher Level Isolation up-to 12GHz for accurate performance — maintains a controlled RF environment inside the enclosure.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals — lets power reach the equipment inside without opening a path for RF leakage.
Maximize testing efficiency with our custom-designed RF enclosures for consumer product testing.
Rugged construction for long life — supporting a long service life under regular lab conditions.
Table Top design for the convenience of testing.
Shielding Effectiveness is measured with all I/O interfaces installed, Expect gloves & see through Glass.

Industries We Serve

Defence

Know More

Telecommunication

Know More

Consumer Electronics

Know More

Research Institution

Know More

SCROLL

RF Isolation

Shielding Effectiveness

≥ 130 dB @ 20 MHz ~ 1 GHz
≥ 120 dB @ 3 GHz
≥ 120 dB @ 5 GHz
≥ 115 dB @ 6 GHz
≥ 110 dB @ 7 GHz
≥ 110 dB @ 8 GHz
≥100 db @ 12 GHz

The RF shield box exceeds minimum required isolation shielding performance across the tested frequency range, ensuring reliable and consistent RF testing performance.
