HDRF-211310 | Benchtop/Desktop Shield Box

Benchtop RF Shield Box for Wireless Testing

Bench-top / Table-Top Shield Box. It is designed for WLAN , wireless device testing. It supports 802.11a, b, g, n, a, ax, be. It also supports Bluetooth, RFID, 3G and 5G Device testing.

Download Data Sheet

Let's Connect

Contact us for sales and pricing information.

Free Consultation

Add to Inquiry

Product Specifications

Internal Dimensions

Width: 491 MM, Height: 201 MM, Depth : 291 MM

External Dimensions

Width: 535 MM, Height: 250 MM, Depth : 335 MM

Features of HDRF-211310

Designed and developed for WLAN and wireless device testing.
Supports 802.11a/b/g/n/ac/ax/be devices.
Also suited to Bluetooth, RFID, 3G and 5G device testing.

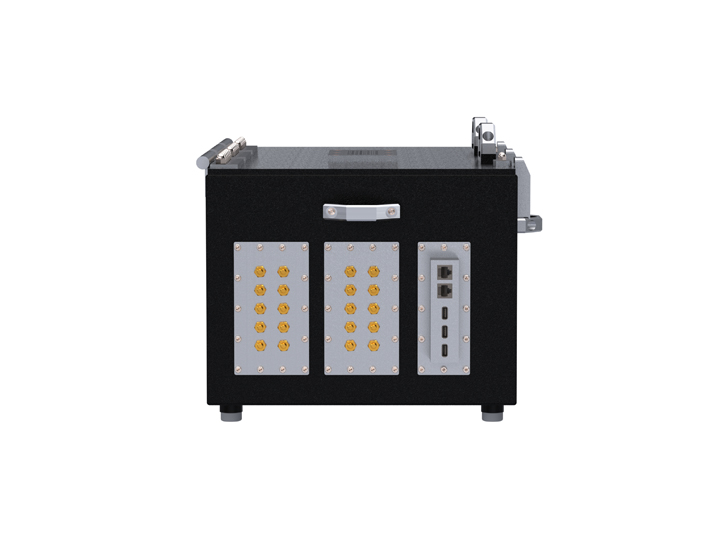

Wide range of I/O connector options — reducing the need for custom cut-outs when connecting external equipment.

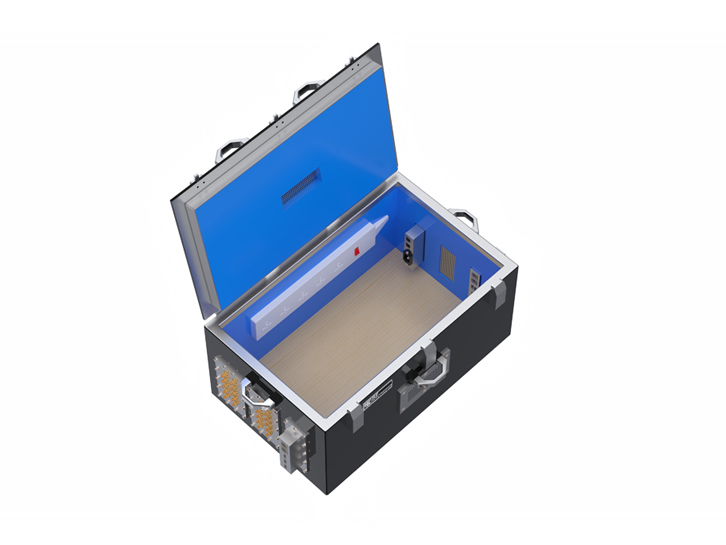

Thick RF absorbing foam deadens standing waves and reflections — damping internal reflections so measurements stay consistent across the working range.
Higher Level Isolation up-to 12GHz for accurate performance — maintains a controlled RF environment inside the enclosure.

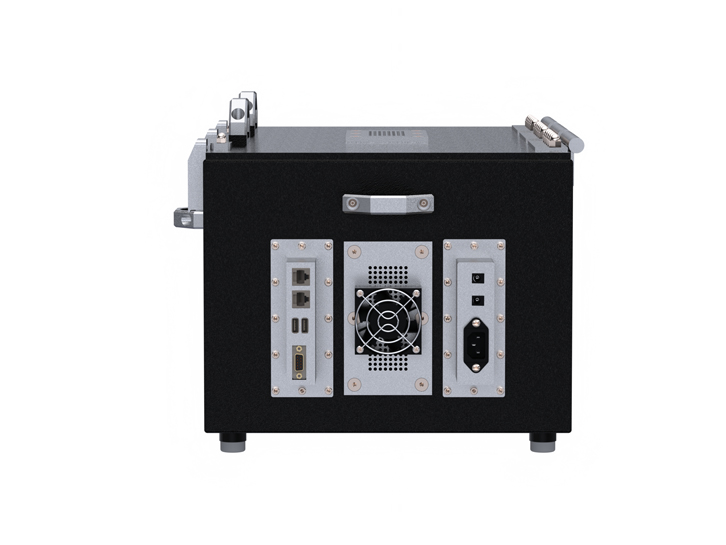

Equipped with shielded power filters for power connection in the box while still blocking all wireless signals — lets power reach the equipment inside without opening a path for RF leakage.
Rugged construction for long life. Bench-top / Table-Top Shield Box Design — supporting a long service life under regular lab conditions.
Customized Size to suit application specific requirements ,ideal for test platforms — allowing dimensions to be matched to a specific test setup rather than a fixed standard size.

Industries We Serve

IoT Device Testing

Know More

Telecommunication

Know More

Industrial Automation

Know More

Automotive

Know More

Consumer Electronics

Know More

SCROLL

RF Isolation

Shielding Effectiveness

≥ 130 dB @ 20 MHz ~ 1 GHz
≥ 120 dB @ 3 GHz
≥ 120 dB @ 5 GHz
≥ 115 dB @ 6 GHz
≥ 110 dB @ 7 GHz
≥ 110 dB @ 8 GHz
≥100 db @ 12 GHz

The RF shield box exceeds minimum required isolation shielding performance across the tested frequency range, ensuring reliable and consistent RF testing performance.
