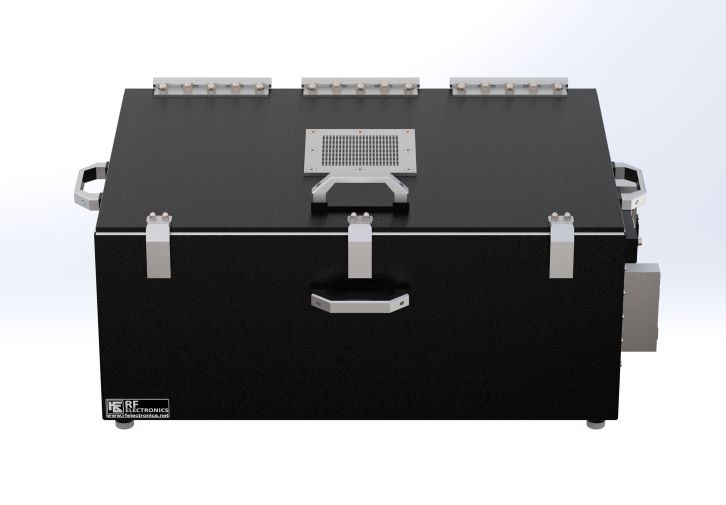

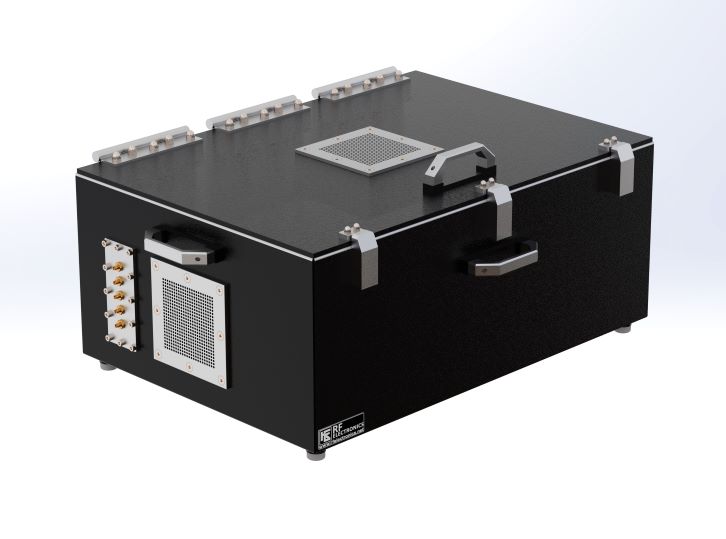

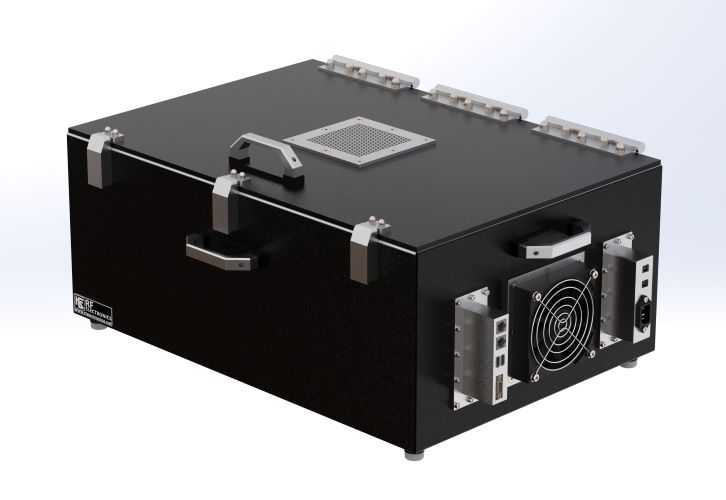

HDRF-251810 | Benchtop/Desktop Shield Box

Benchtop RF Shield Box for Bluetooth Testing

HDRF-251810 is a bench-top RF shield box. It is designed for WLAN , wireless device testing. It supports 802.11a, b, g, n, ac, ax,be. It also supports Bluetooth, RFID, 3G, LTE and 5G Device testing.

Let's Connect

Contact us for sales and pricing information.

Free Consultation

Add to Inquiry

Product Specifications

Internal Dimensions

Width: 548 MM, Height: 199 MM, Depth : 386 MM

External Dimensions

Width: 635 MM, Height: 255 MM, Depth : 450 MM

Features of HDRF-251810

Designed and developed for WLAN and wireless device testing.
Supports 802.11a/b/g/n/ac/ax/be devices.
Also suited to Bluetooth, RFID, 3G and 5G device testing.

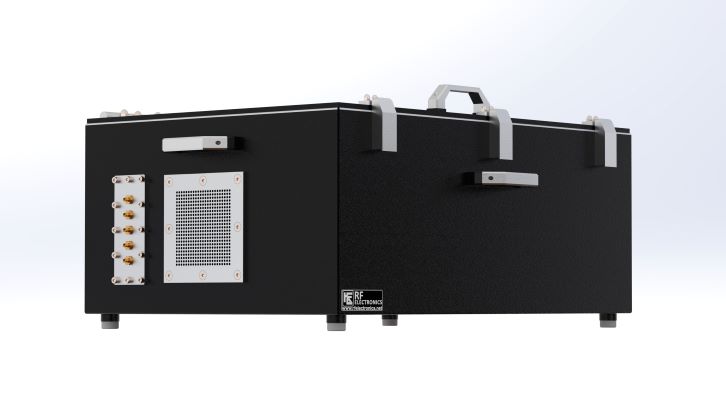

Wide range of I/O connector options — giving installers flexibility when wiring power, control and RF connections into the unit.

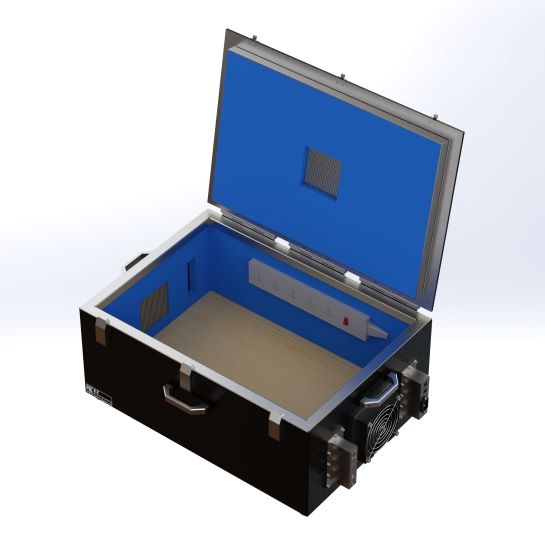

Thick RF absorbing foam deadens standing waves and reflections — reducing reflected energy inside the chamber, which keeps readings more repeatable.
Higher Level Isolation up-to 12GHz for accurate performance — maintains a controlled RF environment inside the enclosure.

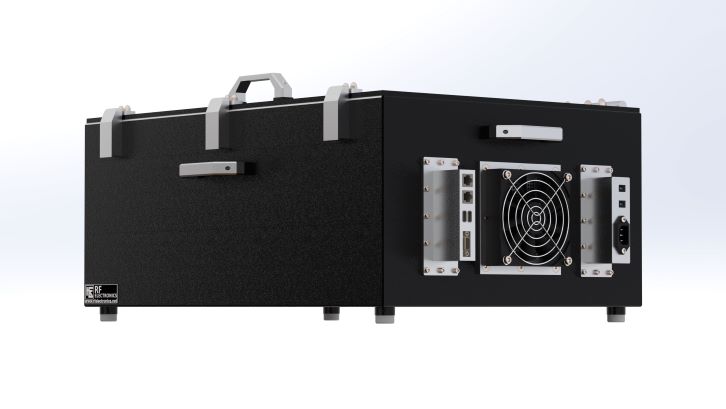

Equipped with shielded power filters for power connection in the box while still blocking all wireless signals — lets power reach the equipment inside without opening a path for RF leakage.
Comply with regulatory requirements and enhance product quality with our comprehensive EMC testing for automotive equipment.
Rugged construction for long life — supporting a long service life under regular lab conditions.
Table Top design for the convenience of testing.

Industries We Serve

IoT Device Testing

Know More

Telecommunication

Know More

Automotive

Know More

Consumer Electronics

Know More

SCROLL

RF Isolation

Shielding Effectiveness

≥ 130 dB @ 20 MHz ~ 1 GHz
≥ 120 dB @ 3 GHz
≥ 120 dB @ 5 GHz
≥ 115 dB @ 6 GHz
≥ 110 dB @ 7 GHz
≥ 110 dB @ 8 GHz
≥100 db @ 12 GHz

The RF shield box exceeds minimum required isolation shielding performance across the tested frequency range, ensuring reliable and consistent RF testing performance.
