HDRF-251810-A | Benchtop/Desktop Shield Box

Benchtop RF Shield Box for Bluetooth Testing

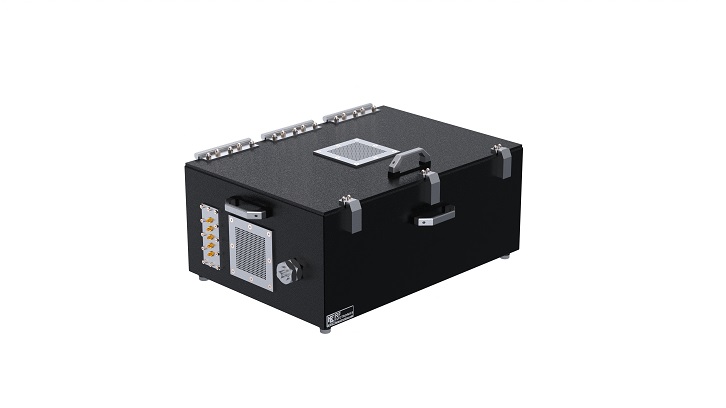

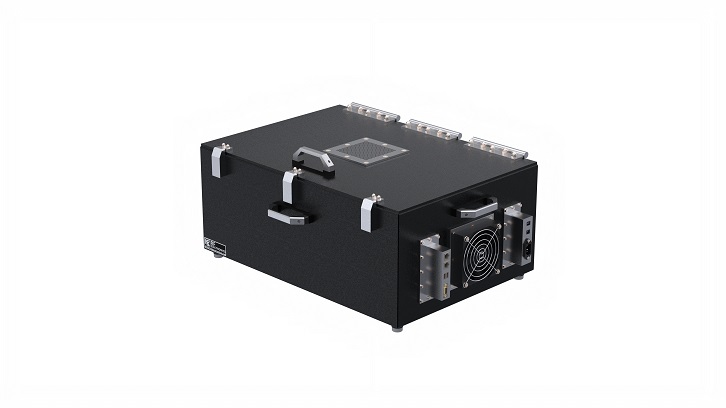

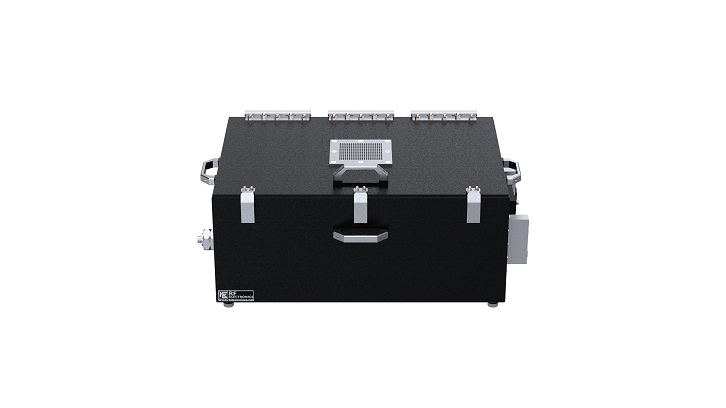

HDRF-251810-A is a bench-top RF shield box. It is designed for WLAN , wireless device testing. It supports 802.11a, b, g, n, ac, ax,be. It also supports Bluetooth, RFID, 3G, LTE and 5G Device testing.

Download Data Sheet

Let's Connect

Contact us for sales and pricing information.

Free Consultation

Add to Inquiry

Product Specifications

Internal Dimensions

Width: 555 MM, Height: 200 MM, Depth : 396 MM

External Dimensions

Width: 635 MM, Height: 255 MM, Depth : 450 MM

Weight

Net Weight: 15.00 KG

Features of HDRF-251810-A

Designed and developed for WLAN and wireless device testing.
Supports 802.11a/b/g/n/ac/ax/be devices.
Also suited to Bluetooth, RFID, 3G and 5G device testing.
Wide range of I/O connector options — reducing the need for custom cut-outs when connecting external equipment.

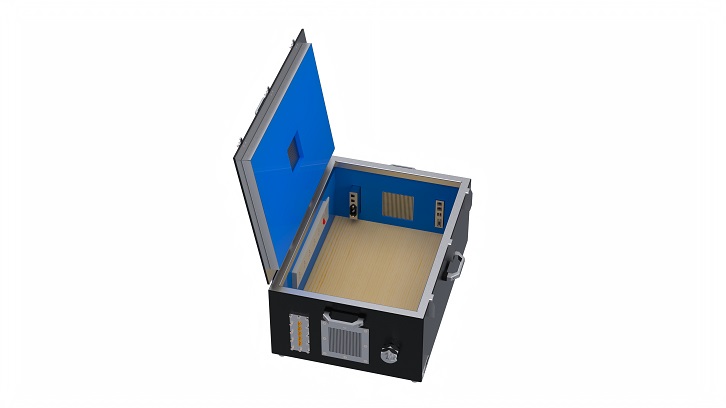

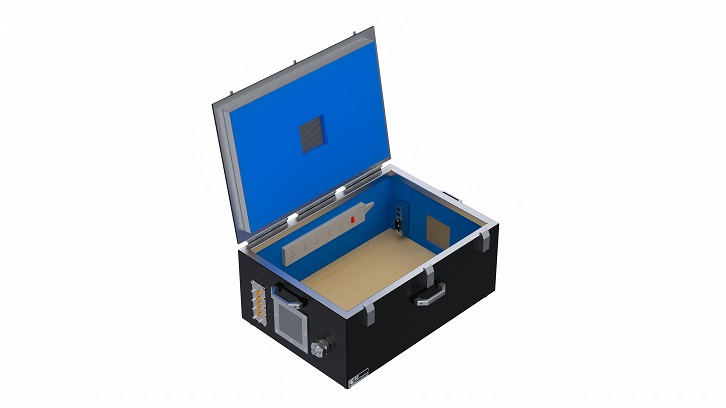

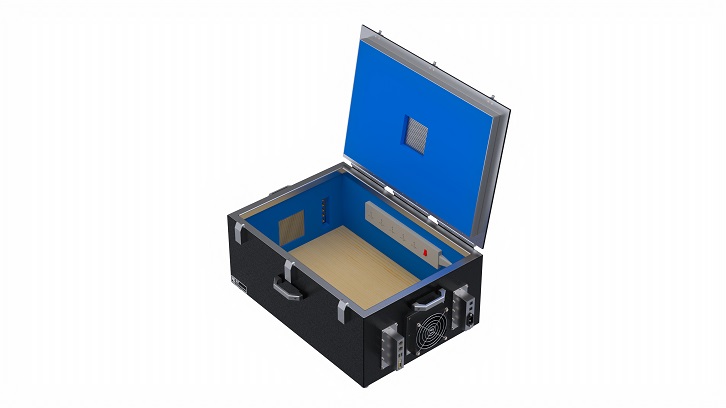

Thick RF absorbing foam deadens standing waves and reflections — damping internal reflections so measurements stay consistent across the working range.
Higher Level Isolation up-to 12GHz for accurate performance — keeps external RF signals from interfering with the device under test.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals — keeps external wireless signals out of the enclosure while still delivering power in.
Comply with regulatory requirements and enhance product quality with our comprehensive EMC testing for automotive equipment.
Rugged construction for long life — built to hold up under repeated day-to-day use in a working test lab.
Table Top design for the convenience of testing.

Industries We Serve

IoT Device Testing

Know More

Telecommunication

Know More

Automotive

Know More

Consumer Electronics

Know More

SCROLL

RF Isolation

Shielding Effectiveness

≥ 130 dB @ 20 MHz ~ 1 GHz
≥ 120 dB @ 3 GHz
≥ 120 dB @ 5 GHz
≥ 115 dB @ 6 GHz
≥ 110 dB @ 7 GHz
≥ 110 dB @ 8 GHz
≥100 db @ 12 GHz

The RF shield box exceeds minimum required isolation shielding performance across the tested frequency range, ensuring reliable and consistent RF testing performance.
