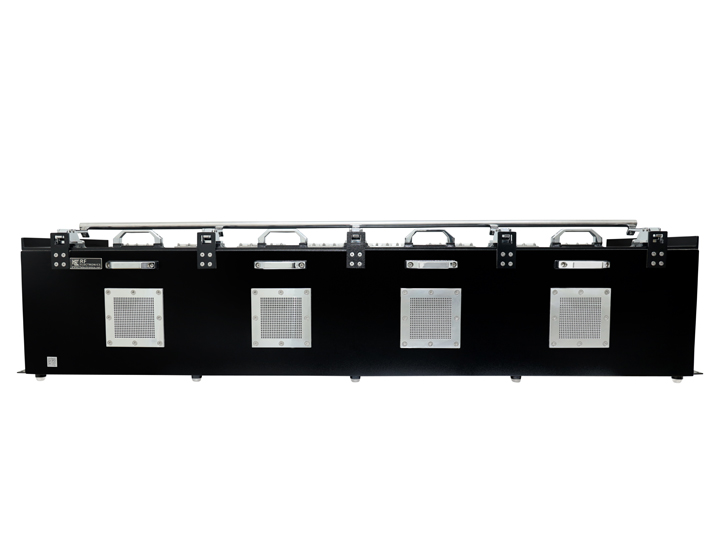

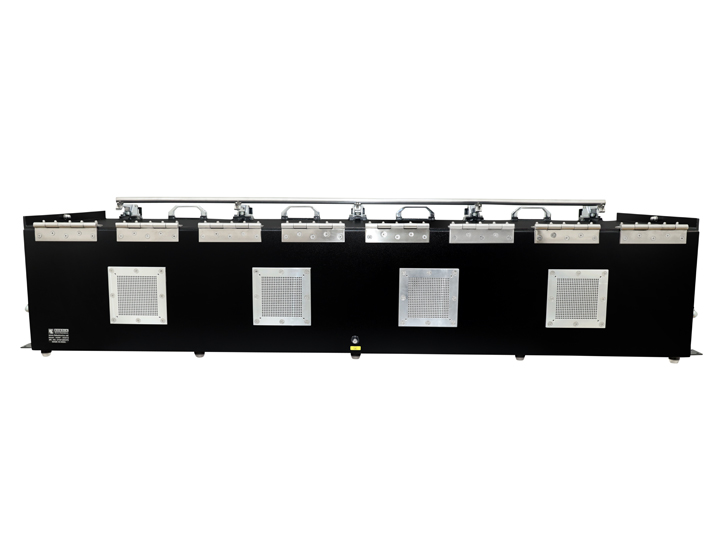

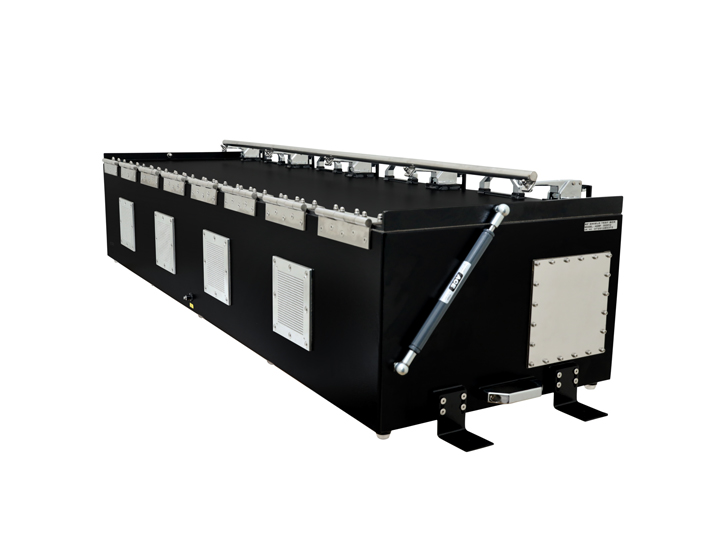

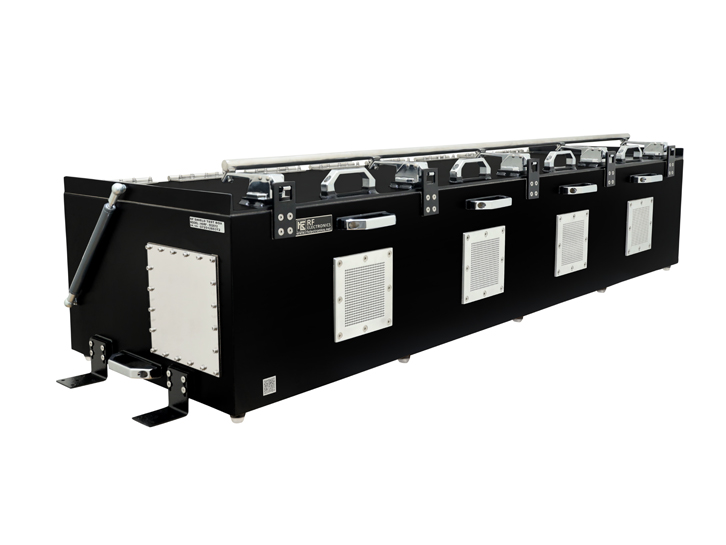

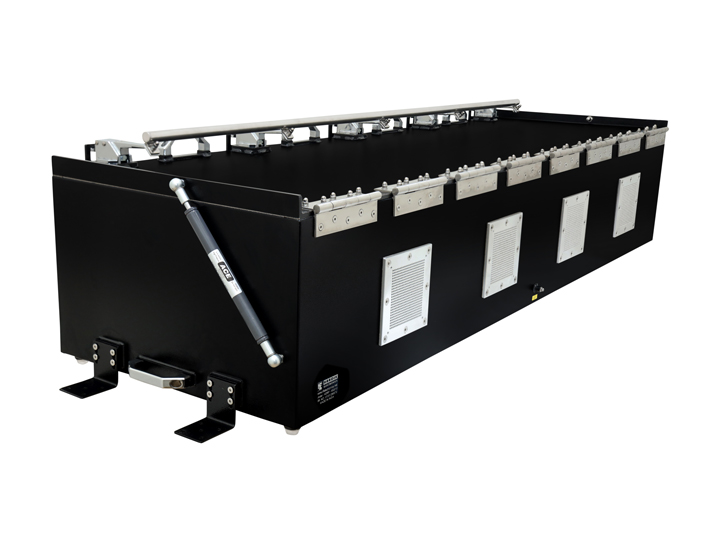

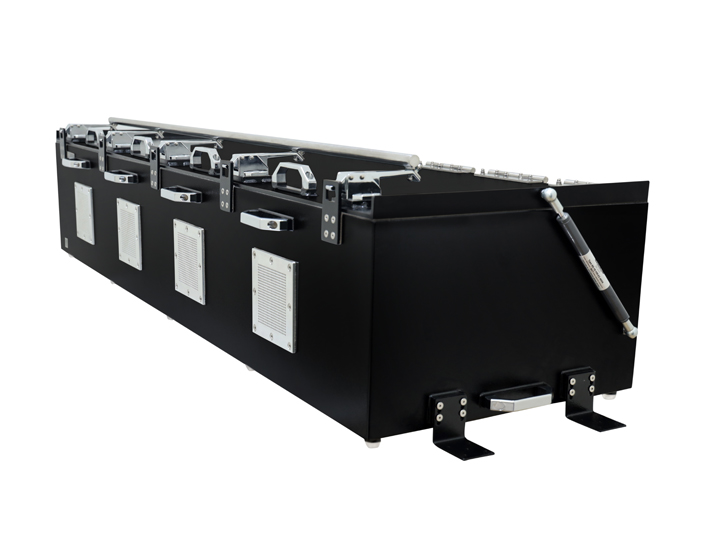

HDRF-552012 | Benchtop/Desktop Shield Box

Benchtop RF Shield Box for Bluetooth Testing

HDRF-552012 is a bench-top RF shield box. It is designed for WLAN , wireless device testing. It supports 802.11a, b, g, n, ac, ax, be. It also supports Bluetooth, RFID, 3G, LTE and 5G Device testing.

Download Data Sheet

Let's Connect

Contact us for sales and pricing information.

Free Consultation

Add to Inquiry

Product Specifications

Internal Dimensions

Width: 1546 MM, Height: 234 MM, Depth : 446 MM

External Dimensions

Width: 1600 MM, Height: 300 MM, Depth : 500 MM

Features of HDRF-552012

Designed and developed for WLAN and wireless device testing.
Supports 802.11a/b/g/n/ac/ax/be devices.
Also suited to Bluetooth, RFID, 3G and 5G device testing.
Wide range of I/O connector options — giving installers flexibility when wiring power, control and RF connections into the unit.

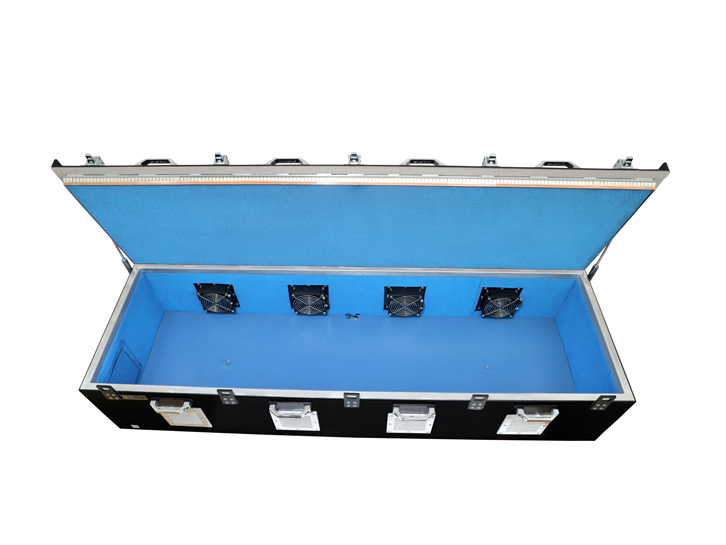

Thick RF absorbing foam deadens standing waves and reflections — reducing reflected energy inside the chamber, which keeps readings more repeatable.
Higher Level Isolation up-to 12GHz for accurate performance — maintains a controlled RF environment inside the enclosure.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals — lets power reach the equipment inside without opening a path for RF leakage.
Rugged construction for long life — supporting a long service life under regular lab conditions.
Table Top design for the convenience of testing.

Industries We Serve

Defence

Know More

Telecommunication

Know More

Industrial Automation

Know More

Automotive

Know More

Research Institution

Know More

Radar Systems

Know More

Medical Devices

Know More

SCROLL

RF Isolation

Shielding Effectiveness

≥ 130 dB @ 20 MHz ~ 1 GHz
≥ 120 dB @ 3 GHz
≥ 120 dB @ 5 GHz
≥ 115 dB @ 6 GHz
≥ 110 dB @ 7 GHz
≥ 110 dB @ 8 GHz
≥100 db @ 12 GHz

The RF shield box exceeds minimum required isolation shielding performance across the tested frequency range, ensuring reliable and consistent RF testing performance.
