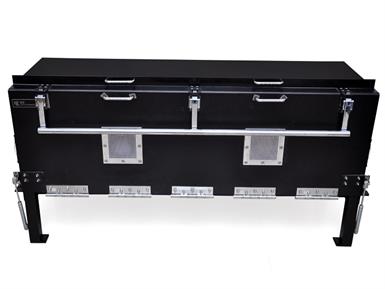

HDRF-1124-P | Rack Mount Shield Box

Rack-Mount RF Shield Box for Digital Forensics Testing

Want to customize your shield box? Build Your Shield Box

HDRF-1124-P | Rack Mount Shield Box

Rack-Mount RF Shield Box for Digital Forensics Testing

24-inch Rack Mount RF Shield Box. It is designed for WLAN , wireless device testing. It supports 802.11a, b, g, n, ac, ax, be. It also supports Bluetooth, RFID, 3G, LTE and 5G Device testing.

Download Data Sheet

Let's Connect

Contact us for sales and pricing information.

Free Consultation

Add to Inquiry

Product Specifications

Internal Dimensions

Width: 503 MM, Height: 243 MM, Depth : 443 MM

External Dimensions

Width: 24 Inch, Height: 7 U, Depth : 560 MM

Weight

Net Weight: 26.00 KG, Gross Weight: 32.00 KG

Packaging Dimensions

Width: 22.00 Inch, Height: 16.00 Inch, Depth: 30.00 Inch

Features of HDRF-1124-P

Designed and developed for WLAN and wireless device testing.
Supports 802.11a/b/g/n/ac/ax/be devices.
Also suited to Bluetooth, RFID, 3G and 5G device testing.
Wide range of I/O connector options — reducing the need for custom cut-outs when connecting external equipment.
Thick RF absorbing foam deadens standing waves and reflections — damping internal reflections so measurements stay consistent across the working range.
Higher Level Isolation up-to 12GHz for accurate performance — maintains a controlled RF environment inside the enclosure.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals — lets power reach the equipment inside without opening a path for RF leakage.
Affordable shielding solution without compromising on quality or performance — keeps the unit accessible for labs without an oversized shielding budget.
Compact and portable shield box for easy transportation and setup in various environments — supports use across more than one test location without a fixed install.
Rugged construction for long life — supporting a long service life under regular lab conditions.
Standard 24-inch Rack Mount Design ideal for Rack Based Vertical test platforms — fits a standard rack footprint, so it sits with the rest of the test setup.

Industries We Serve

IoT Device Testing

Know More

Telecommunication

Know More

Industrial Automation

Know More

Automotive

Know More

Consumer Electronics

Know More

SCROLL

RF Isolation

Shielding Effectiveness

≥ 130 dB @ 20 MHz ~ 1 GHz
≥ 120 dB @ 3 GHz
≥ 120 dB @ 5 GHz
≥ 115 dB @ 6 GHz
≥ 110 dB @ 7 GHz
≥ 110 dB @ 8 GHz
≥100 db @ 12 GHz

The RF shield box exceeds minimum required isolation shielding performance across the tested frequency range, ensuring reliable and consistent RF testing performance.
