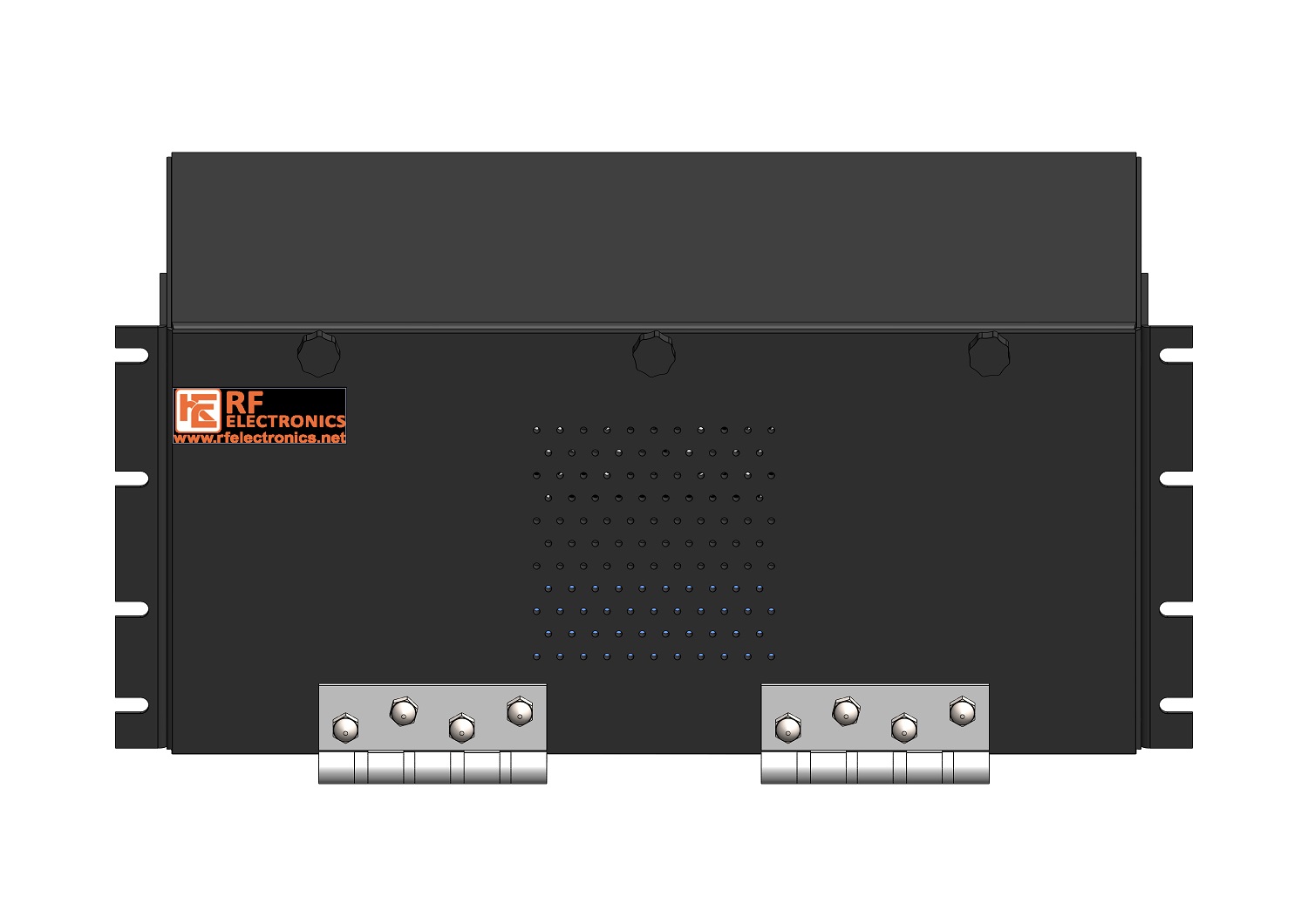

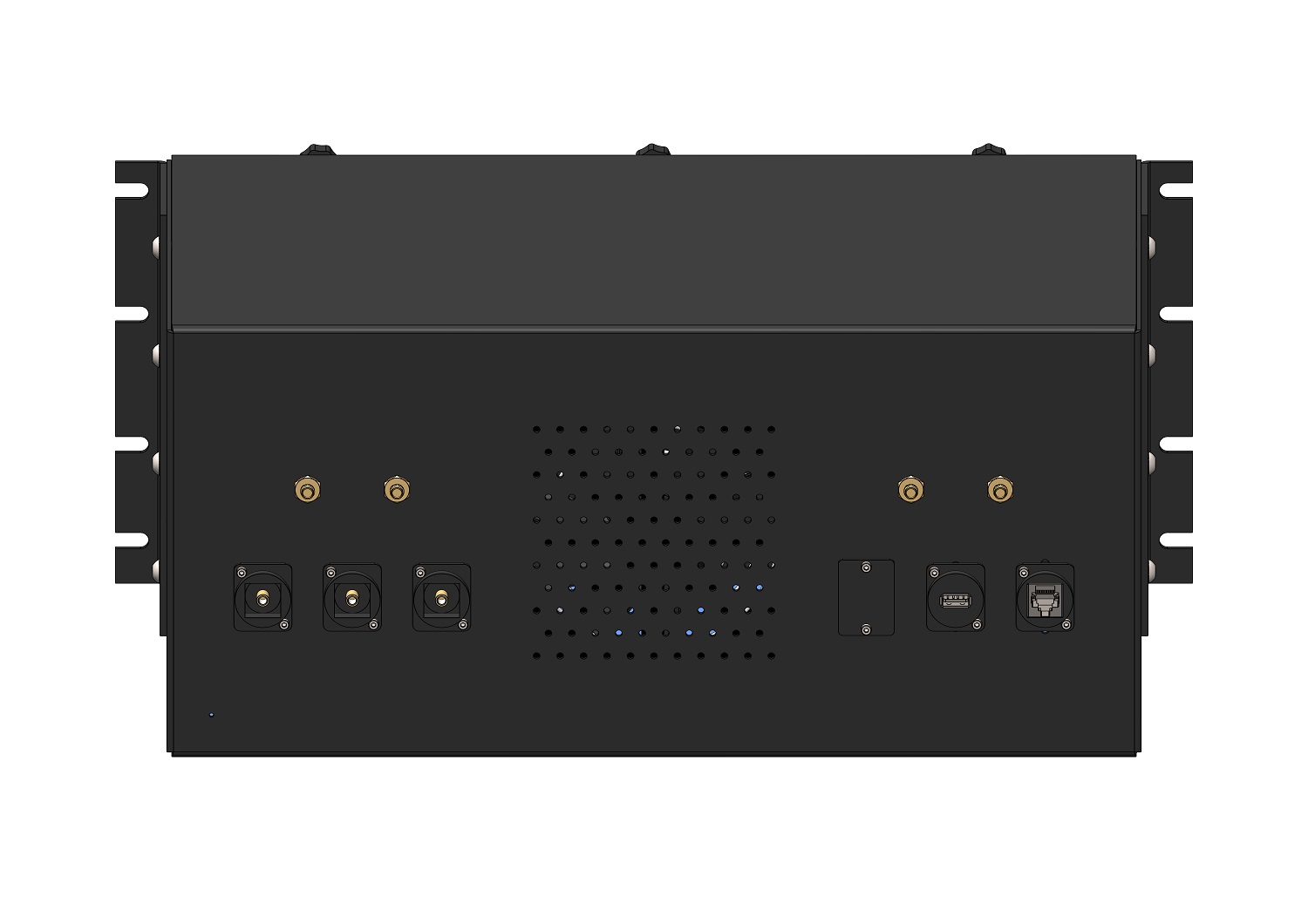

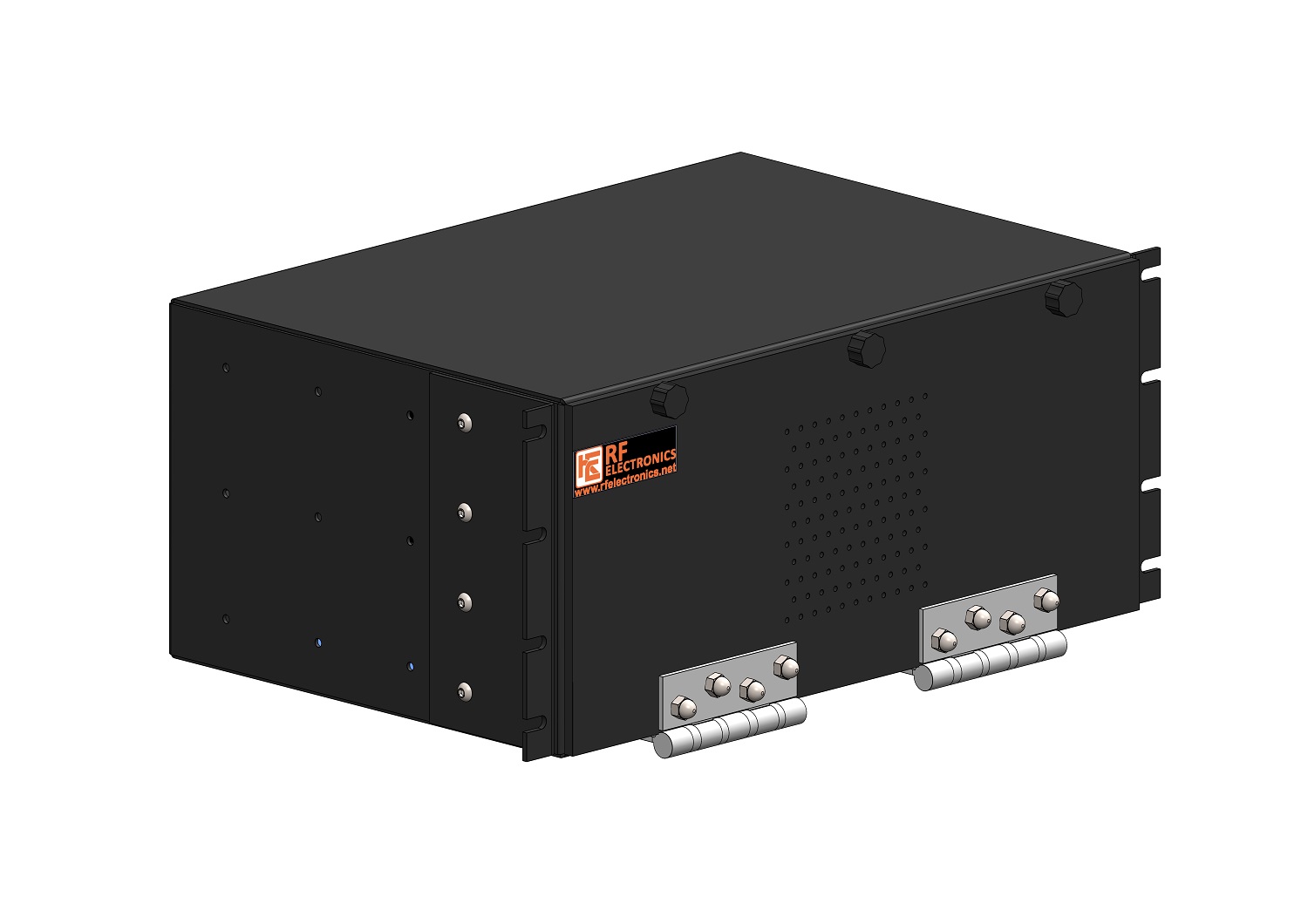

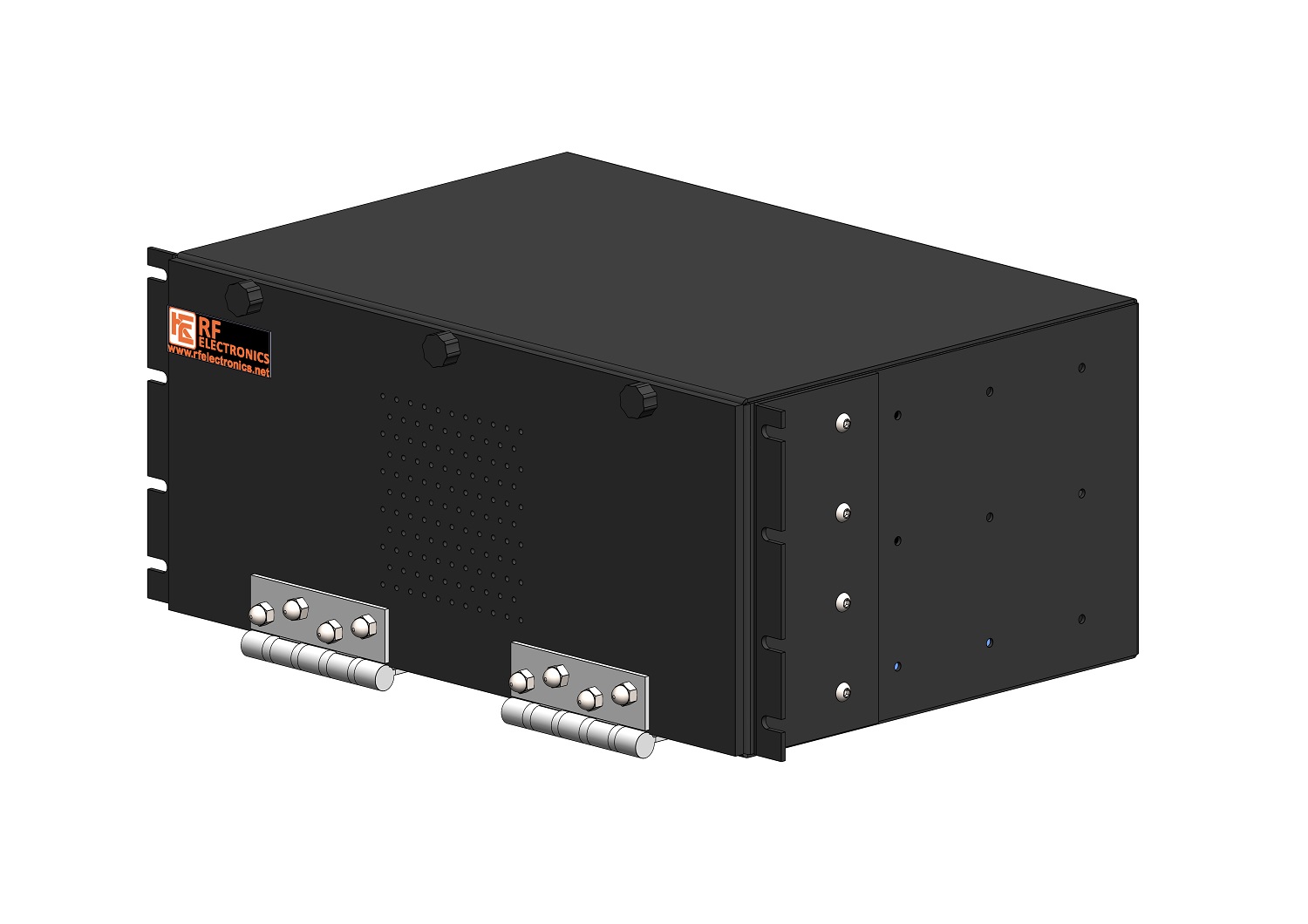

HDRF-5U19 | Rack Mount Shield Box

Rack-Mount RF Shield Box for Wireless Testing

HDRF-5U19 is a 19-inch rack-mount RF shield box. It is designed for WLAN , wireless device testing. It supports 802.11a, b, g, n, ac, ax, be. It also supports Bluetooth, RFID, 3G, LTE and 5G Device testing.

Let's Connect

Contact us for sales and pricing information.

Free Consultation

Add to Inquiry

Product Specifications

Internal Dimensions

Width: 352 MM, Height: 106 MM, Depth : 368 MM

External Dimensions

Width: 19 Inch, Height: 5 U, Depth : 300 MM

Features of HDRF-5U19

Designed and developed for WLAN and wireless device testing.
Supports 802.11a/b/g/n/ac/ax/be devices.
Also suited to Bluetooth, RFID, 3G and 5G device testing.

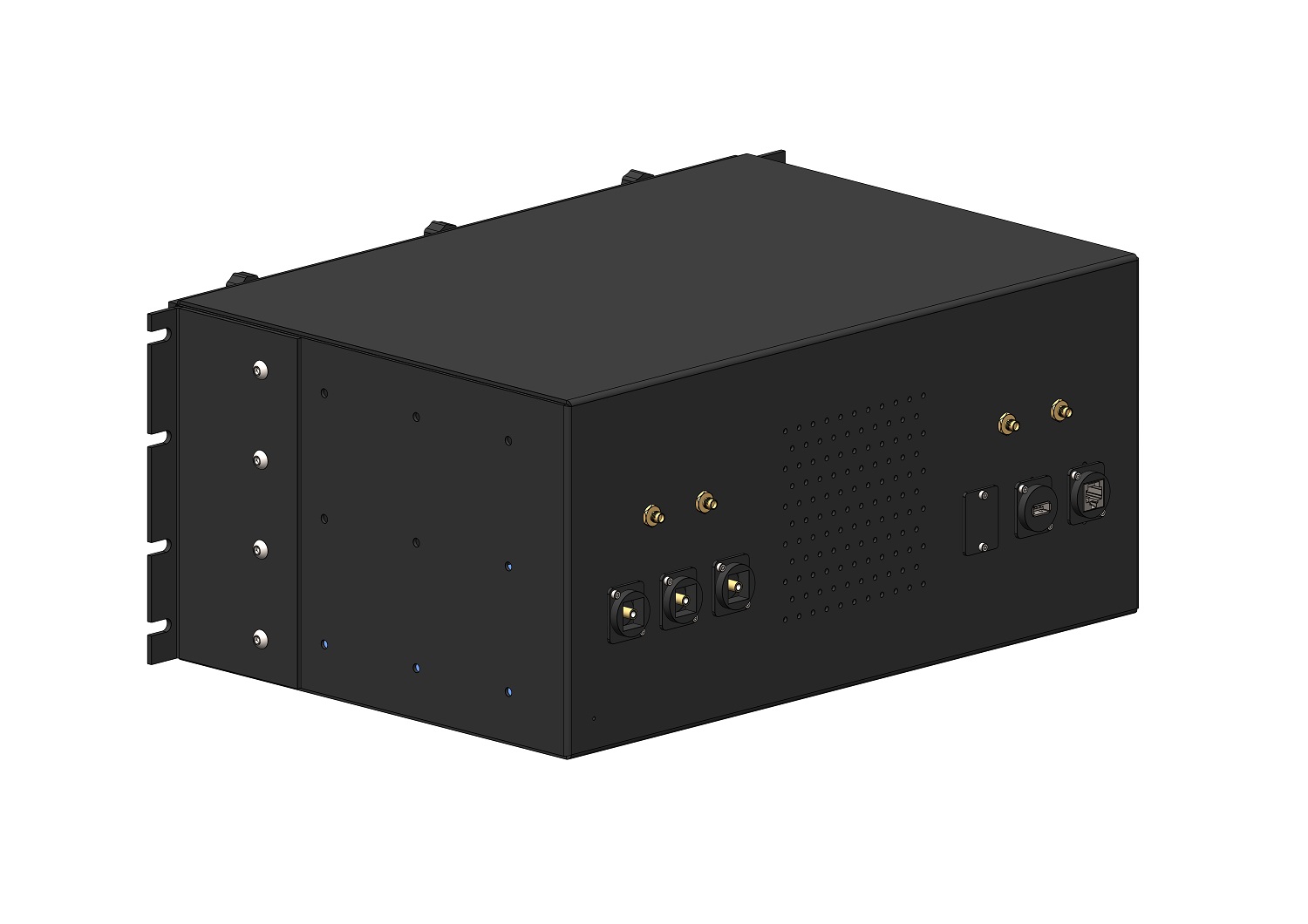

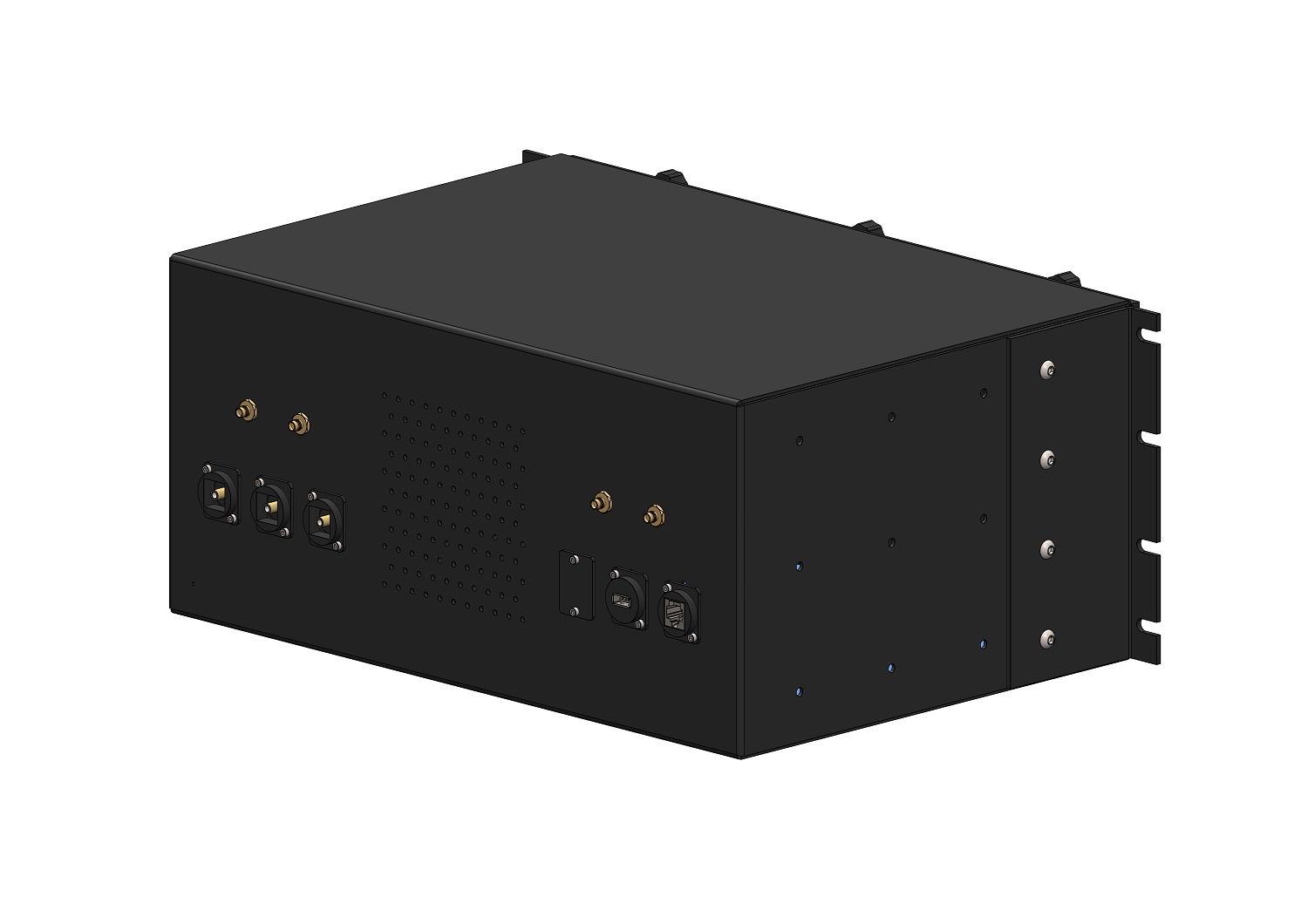

Wide range of I/O connector options — simplifying how power, control and RF signal lines are routed through the enclosure.

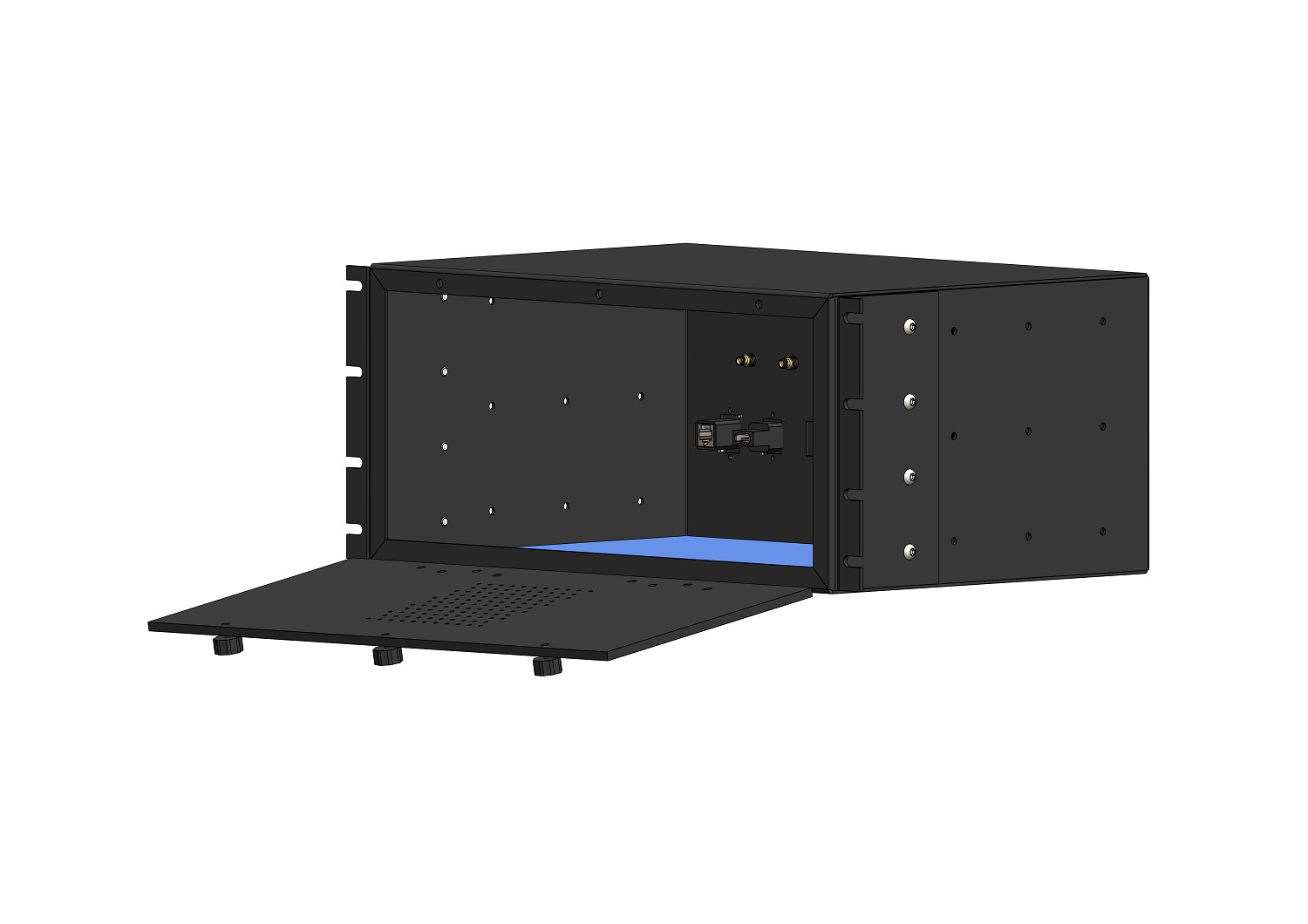

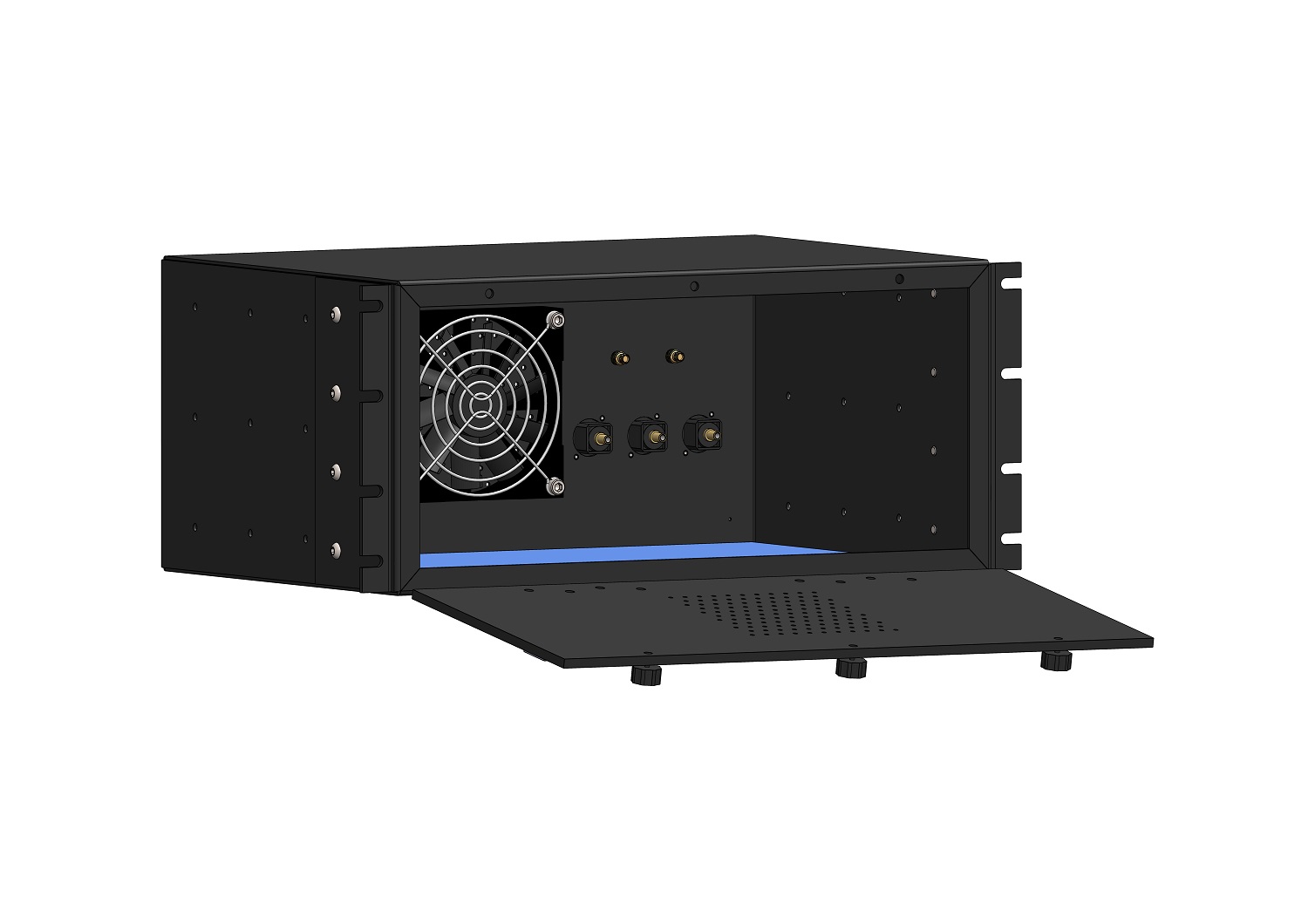

Thick RF absorbing foam deadens standing waves and reflections — helping deaden standing waves and internal reflections for more consistent test results.
Higher Level Isolation up-to 12GHz for accurate performance — maintains a controlled RF environment inside the enclosure.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals — lets power reach the equipment inside without opening a path for RF leakage.
Rugged construction for long life — supporting a long service life under regular lab conditions.
Standard 19-inch Rack Mount Design ideal for Rack Based Vertical test platforms — fits a standard rack footprint, so it sits with the rest of the test setup.

Industries We Serve

IoT Device Testing

Know More

Telecommunication

Know More

Industrial Automation

Know More

Automotive

Know More

Consumer Electronics

Know More

SCROLL

RF Isolation

Shielding Effectiveness

≥ 130 dB @ 20 MHz ~ 1 GHz
≥ 120 dB @ 3 GHz
≥ 120 dB @ 5 GHz
≥ 115 dB @ 6 GHz
≥ 110 dB @ 7 GHz
≥ 110 dB @ 8 GHz
≥100 db @ 12 GHz

The RF shield box exceeds minimum required isolation shielding performance across the tested frequency range, ensuring reliable and consistent RF testing performance.
