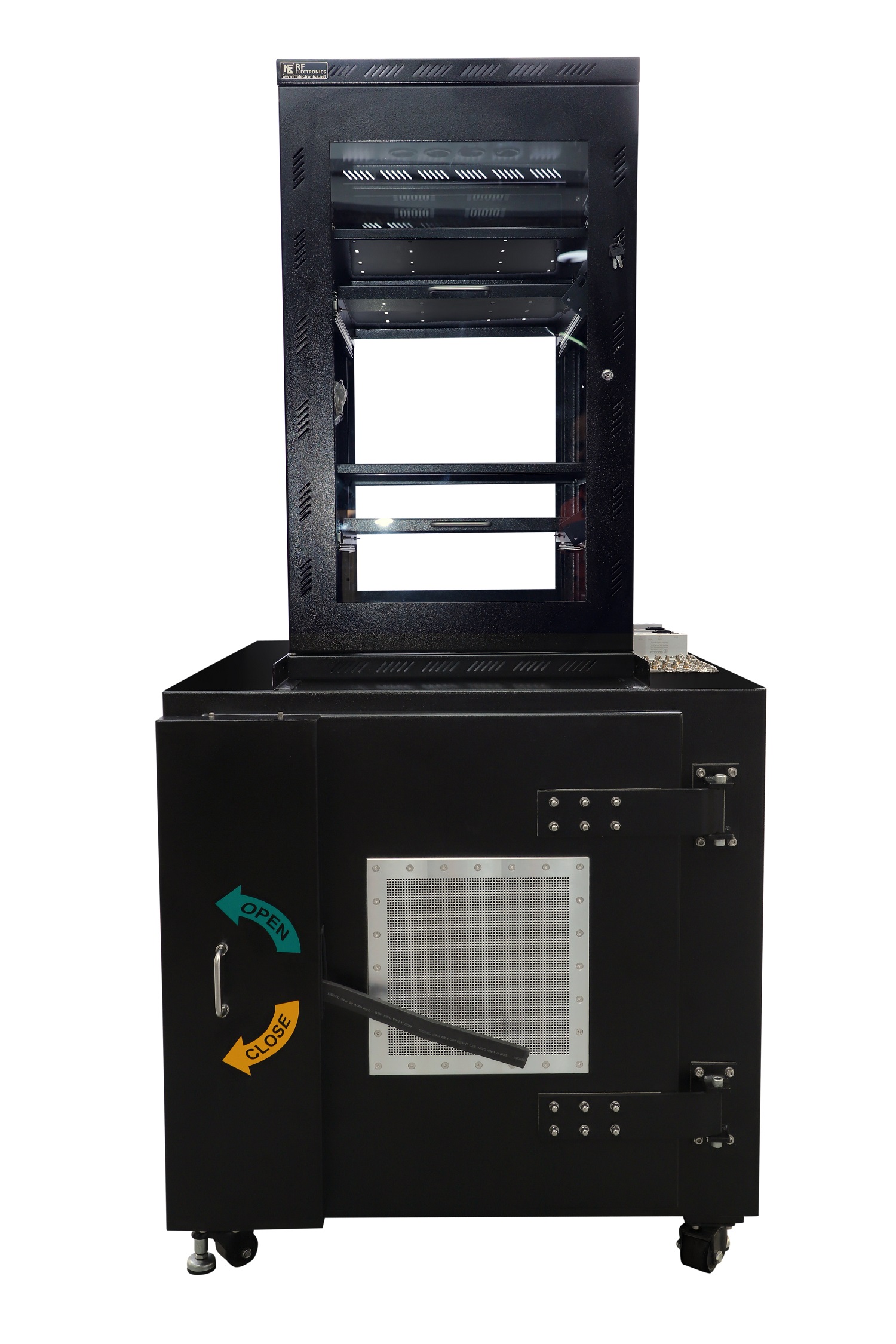

HDRF-3579-B | Standalone Shield Box

Standalone RF Shield Box for Wireless Testing

Stand Alone Portable RF Shield Box. It is designed for WLAN , wireless device testing. It supports 802.11a, b, g, n, ac,ax,be. It also supports Bluetooth, RFID, 3G, LTE and 5G FR1 Device testing.

Let's Connect

Contact us for sales and pricing information.

Free Consultation

Add to Inquiry

Product Specifications

Internal Dimensions

Width: 1150 MM, Height: 850 MM, Depth : 850 MM

External Dimensions

Width: 1200 MM, Height: 900 MM, Depth : 900 MM

Weight

Net Weight: 282.00 KG, Gross Weight: 431.00 KG

Packaging Dimensions

Width: 49.00 Inch, Height: 54.00 Inch, Depth: 69.00 Inch

Features of HDRF-3579-B

Designed and developed for WLAN and wireless device testing.
Supports 802.11a/b/g/n/ac/ax/be devices.
Also suited to Bluetooth, RFID, 3G and 5G FR1 device testing.

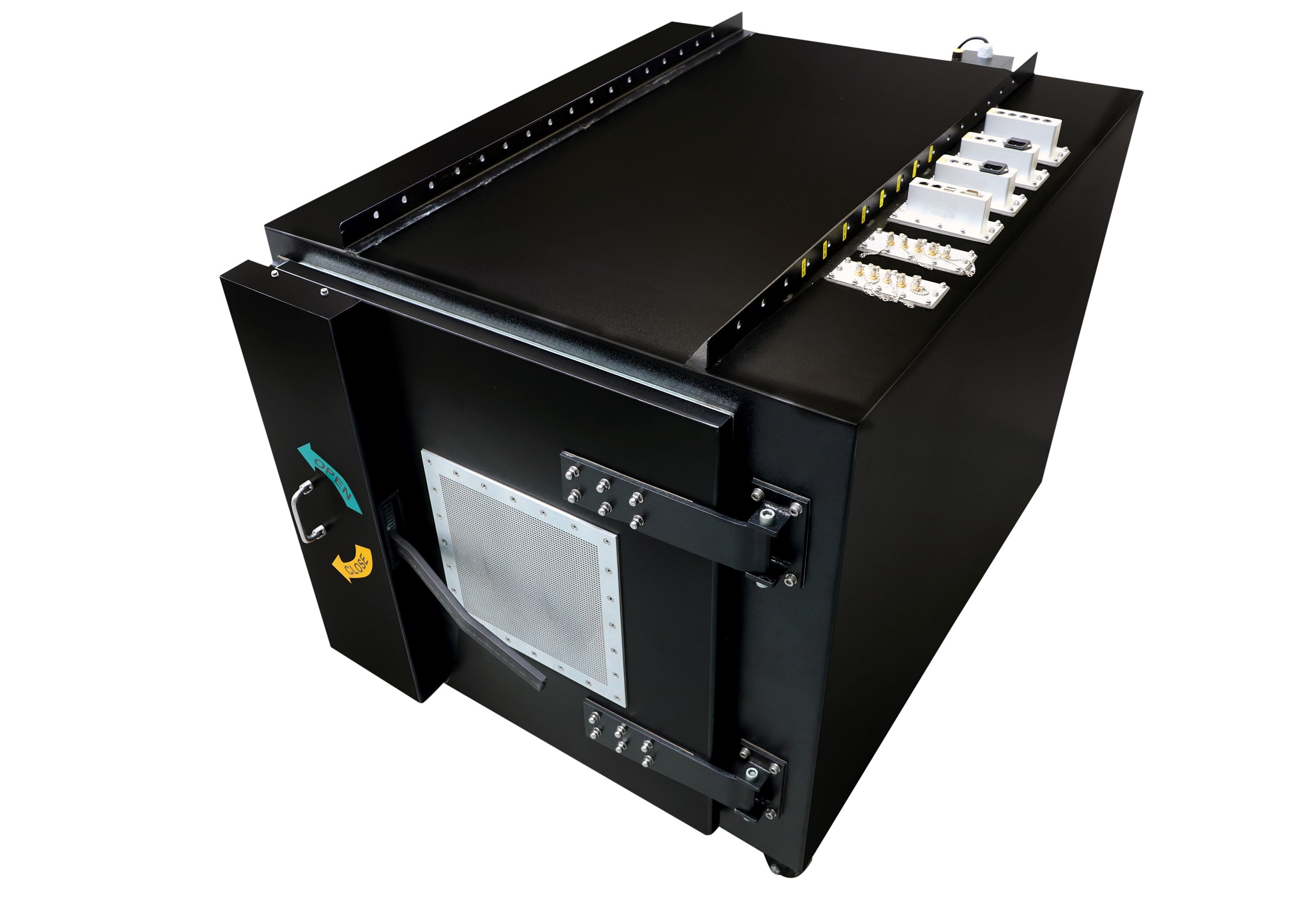

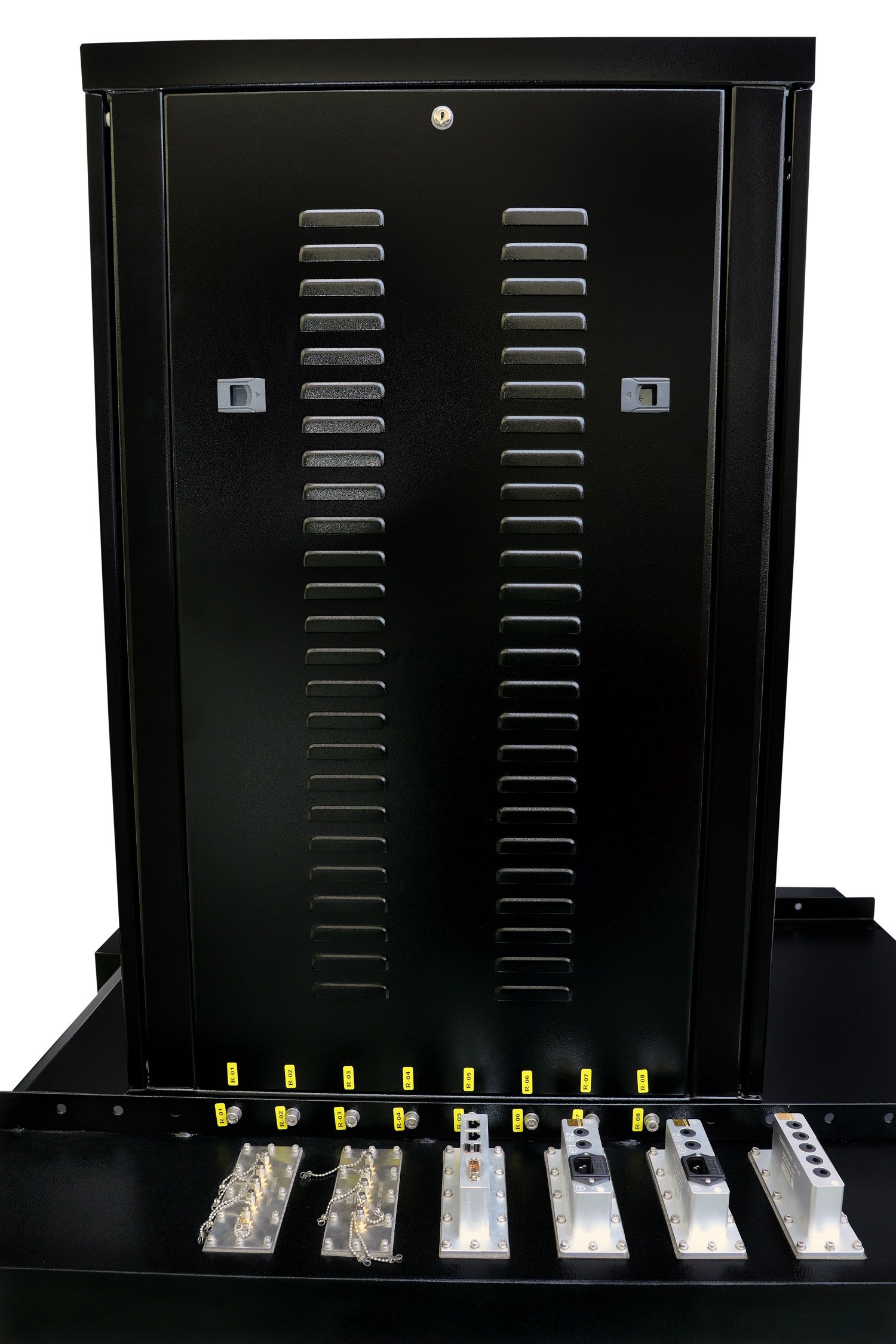

Wide range of I/O connector options — simplifying how power, control and RF signal lines are routed through the enclosure.

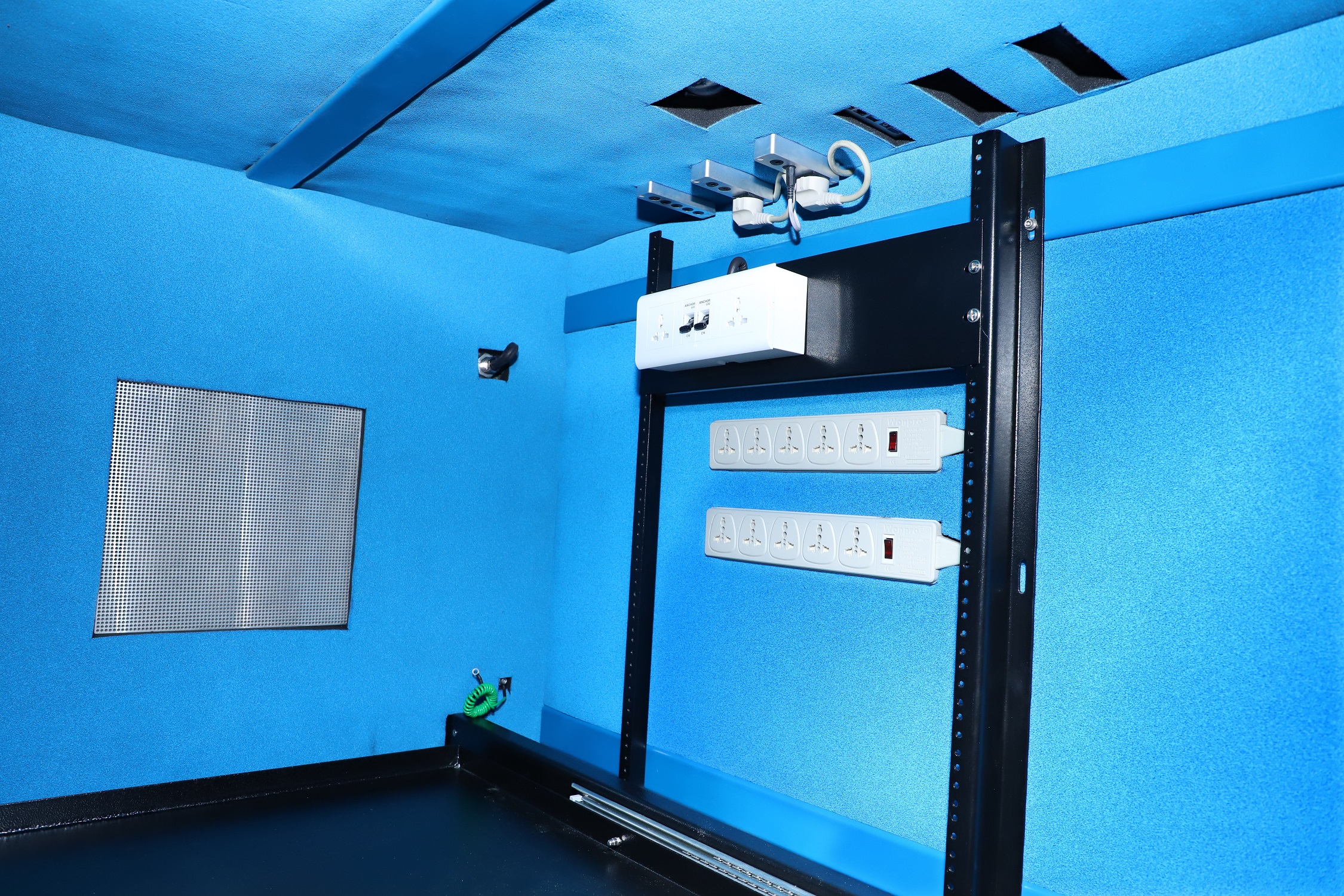

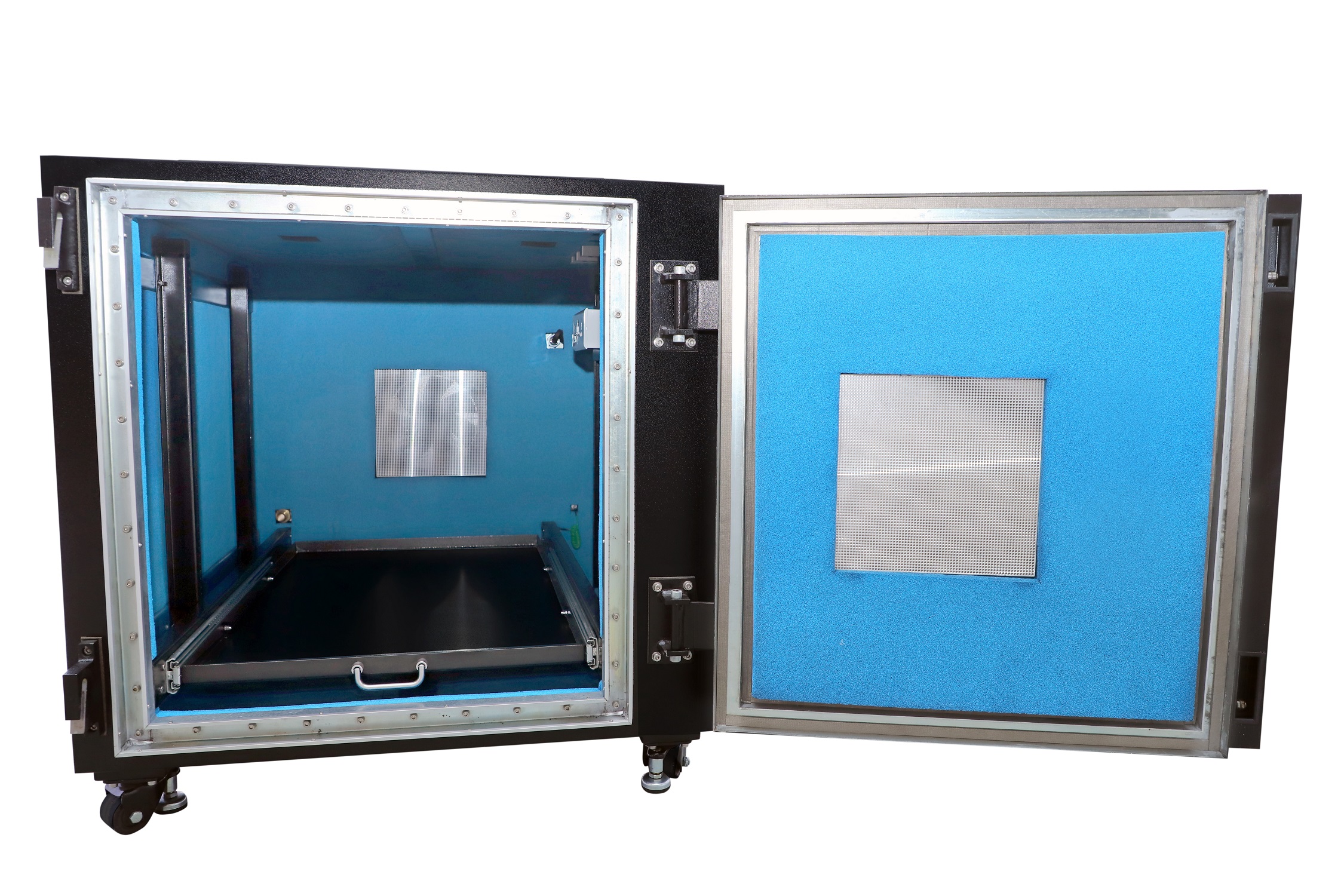

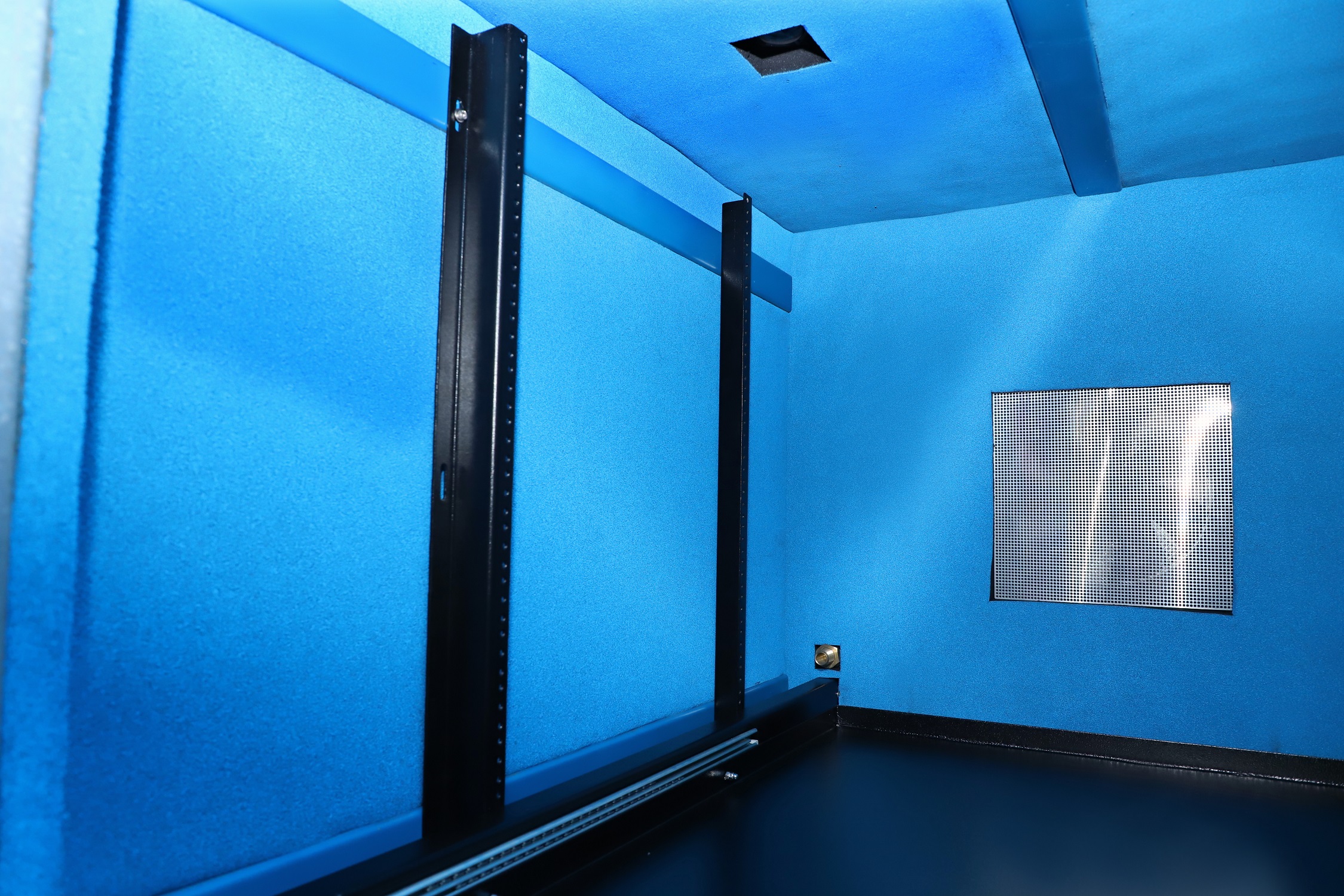

Thick RF absorbing foam deadens standing waves and reflections — helping deaden standing waves and internal reflections for more consistent test results.
Higher Level Isolation up-to 12GHz for accurate performance — maintains a controlled RF environment inside the enclosure.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals — lets power reach the equipment inside without opening a path for RF leakage.
Rugged construction for long life — supporting a long service life under regular lab conditions.

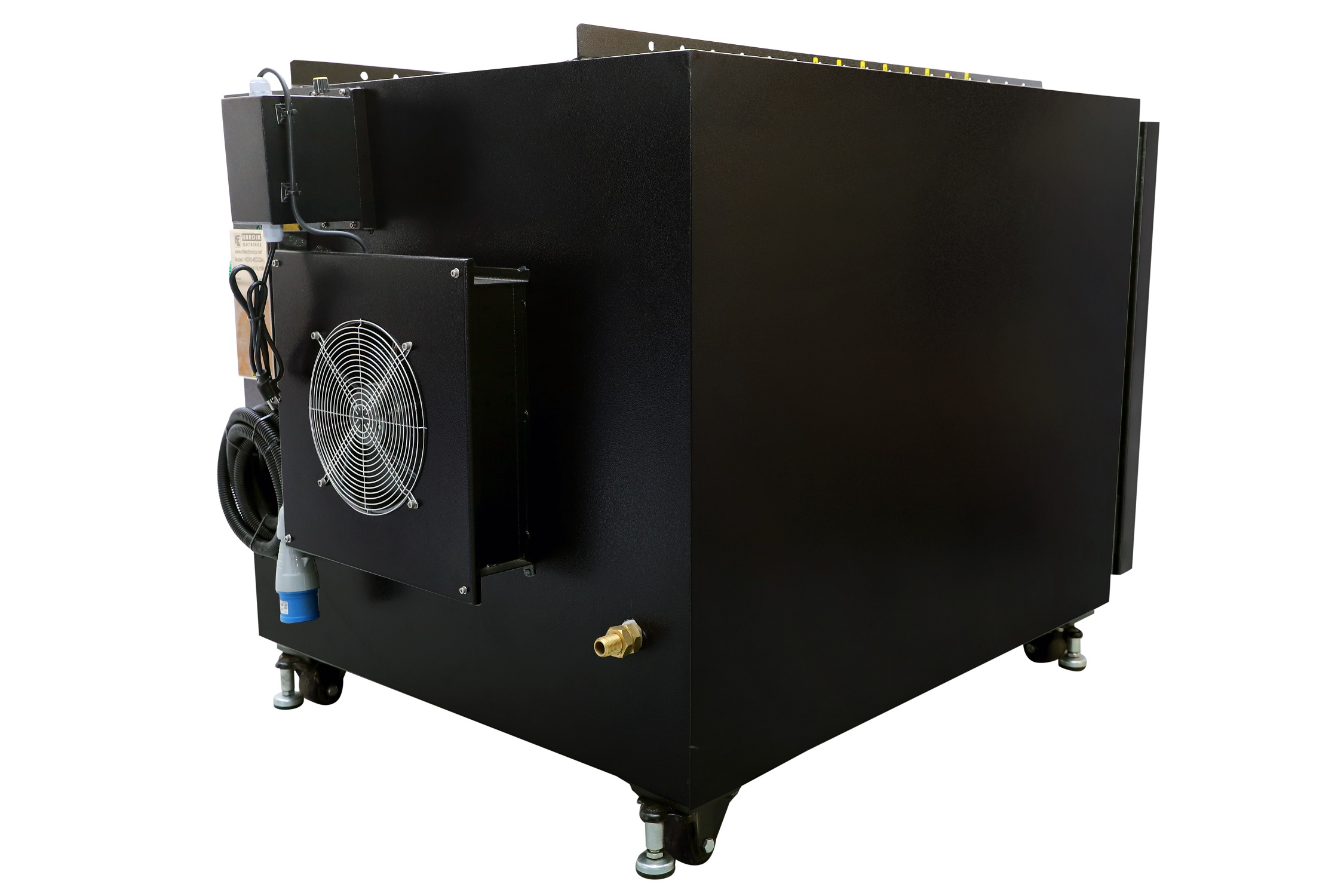

Fully portable design equipped with caster wheels for ease of movement — letting the unit be rolled between benches or test cells as needed.
Customized Size to suit application specific requirements ,ideal for test platforms — allowing dimensions to be matched to a specific test setup rather than a fixed standard size.

Industries We Serve

Telecommunication

Know More

Automotive

Know More

Consumer Electronics

Know More

RF Isolation

Shielding Effectiveness

≥ 130 dB @ 20 MHz ~ 1 GHz
≥ 120 dB @ 3 GHz
≥ 120 dB @ 5 GHz
≥ 115 dB @ 6 GHz
≥ 110 dB @ 7 GHz
≥ 110 dB @ 8 GHz
≥100 db @ 12 GHz

The RF shield box exceeds minimum required isolation shielding performance across the tested frequency range, ensuring reliable and consistent RF testing performance.
