HDRF-7370-H | Standalone Shield Box

Standalone RF Shield Box for Bluetooth Testing

Stand Alone Portable RF Shield Box. It is designed for WLAN , wireless device testing. It supports 802.11a, b, g, n, ac,ax, be. It also supports Bluetooth, RFID, 3G, LTE and 5G Device testing.

Download Data Sheet

Let's Connect

Contact us for sales and pricing information.

Free Consultation

Add to Inquiry

Product Specifications

Internal Dimensions

Width: 600 MM, Height: 1750 MM, Depth : 750 MM

External Dimensions

Width: 800 MM, Height: 1955 MM, Depth : 890 MM

Weight

Net Weight: 198.60 KG, Gross Weight: 237.00 KG

Packaging Dimensions

Width: 24.00 Inch, Height: 87.00 Inch, Depth: 38.00 Inch

Features of HDRF-7370-H

Designed and developed for WLAN and wireless device testing.
Supports 802.11a/b/g/n/ac/ax/be devices.
Also suited to Bluetooth, RFID, 3G and 5G device testing.

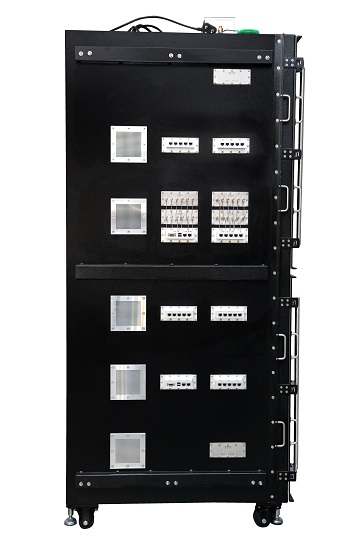

Wide range of I/O connector options — giving installers flexibility when wiring power, control and RF connections into the unit.

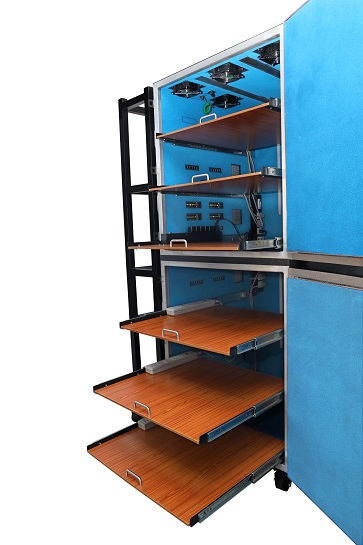

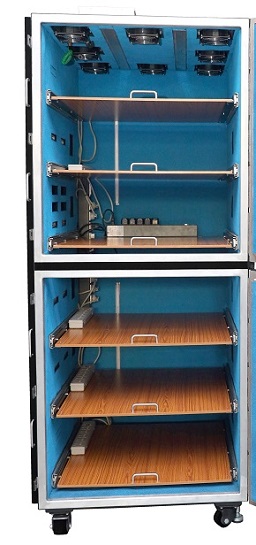

Thick RF absorbing foam deadens standing waves and reflections — reducing reflected energy inside the chamber, which keeps readings more repeatable.
Higher Level Isolation up-to 12GHz for accurate performance — keeps external RF signals from interfering with the device under test.

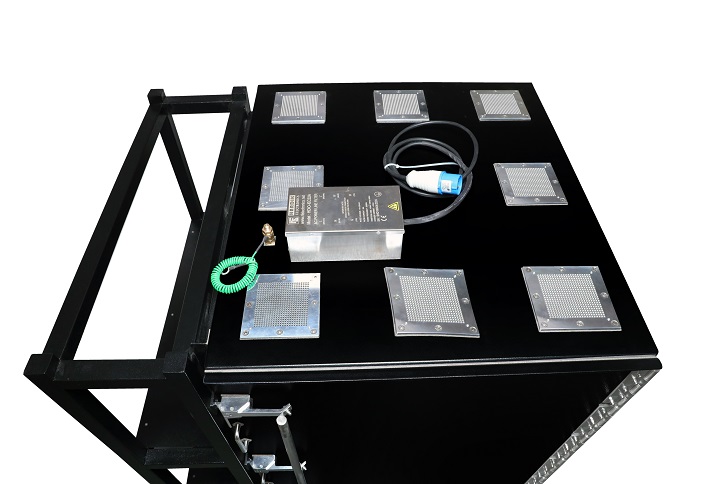

Equipped with shielded power filters for power connection in the box while still blocking all wireless signals — keeps external wireless signals out of the enclosure while still delivering power in.
Advanced RF shielding for government equipment, ensuring uninterrupted and secure communication channels.
Rugged construction for long life — built to hold up under repeated day-to-day use in a working test lab.

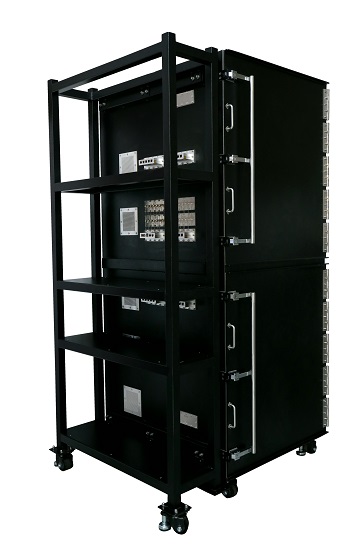

Fully portable design equipped with caster wheels for ease of movement — making the unit easier to reposition around the lab without a hoist or forklift.
Customized Size to suit application specific requirements ,ideal for test platforms — letting the enclosure be sized to the device under test or the surrounding rack.

Industries We Serve

IoT Device Testing

Know More

Telecommunication

Know More

Medical Devices

Know More

RF Isolation

Shielding Effectiveness

≥ 130 dB @ 20 MHz ~ 1 GHz
≥ 120 dB @ 3 GHz
≥ 120 dB @ 5 GHz
≥ 115 dB @ 6 GHz
≥ 110 dB @ 7 GHz
≥ 110 dB @ 8 GHz
≥100 db @ 12 GHz

The RF shield box exceeds minimum required isolation shielding performance across the tested frequency range, ensuring reliable and consistent RF testing performance.
