HDRF-7370-N_ | Standalone Shield Box

Standalone RF Shield Box for Wireless Testing

Stand Alone Portable RF Shield Box. It is designed for WLAN , wireless device testing. It supports 802.11a, b, g, n, ac,ax,be. It also supports Bluetooth, RFID, 3G, LTE and 5G Device testing.

$0.00

Let's Connect

Contact us for sales and pricing information.

Free Consultation

Add to Inquiry

Product Specifications

Internal Dimensions

Width: 734 MM, Height: 1794 MM, Depth : 823 MM

External Dimensions

Width: 800 MM, Height: 1855 MM, Depth : 890 MM

Features of HDRF-7370-N_

Designed and developed for WLAN and wireless device testing.
Supports 802.11a/b/g/n/ac/ax/be devices.
Also suited to Bluetooth, RFID, 3G and 5G device testing.

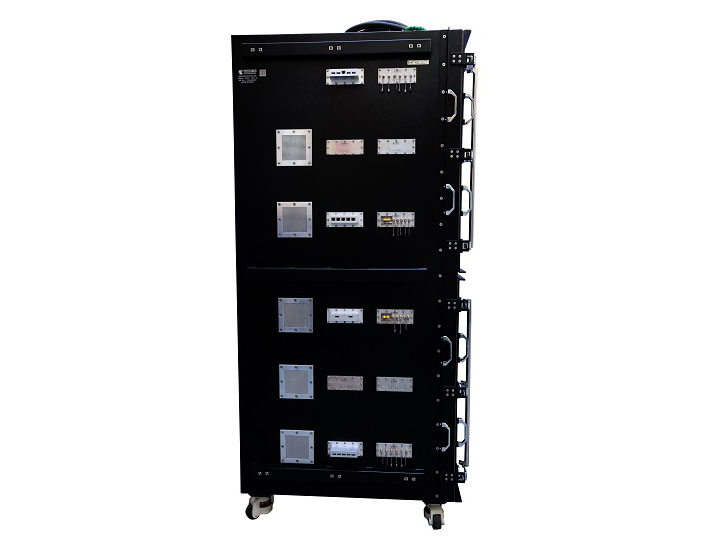

Wide range of I/O connector options — giving installers flexibility when wiring power, control and RF connections into the unit.

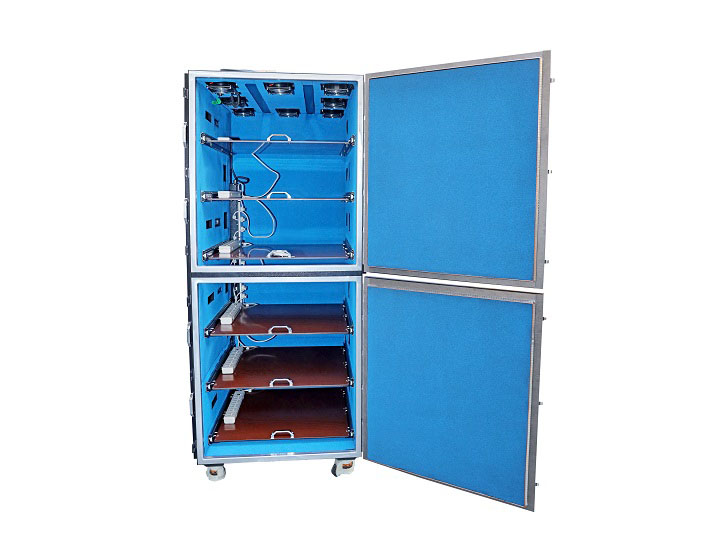

Thick RF absorbing foam deadens standing waves and reflections — reducing reflected energy inside the chamber, which keeps readings more repeatable.
Higher Level Isolation up-to 12GHz for accurate performance — maintains a controlled RF environment inside the enclosure.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals — lets power reach the equipment inside without opening a path for RF leakage.
Rugged construction for long life — supporting a long service life under regular lab conditions.

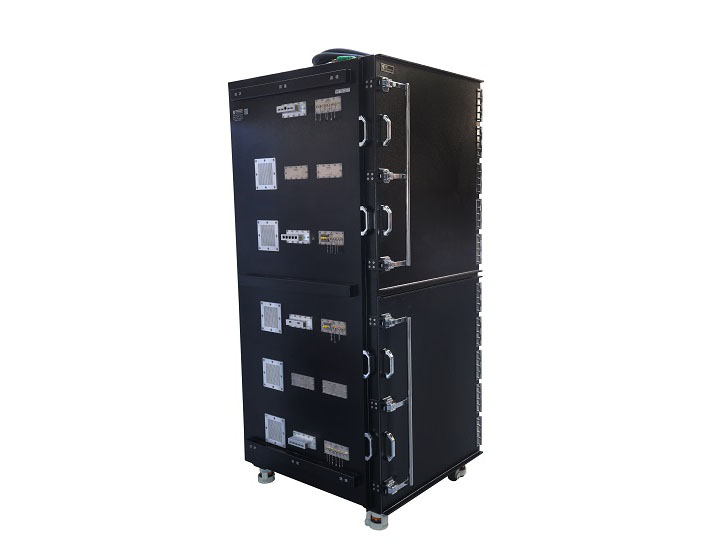

Fully portable design equipped with caster wheels for ease of movement — letting the unit be rolled between benches or test cells as needed.
Customized Size to suit application specific requirements ,ideal for test platforms — allowing dimensions to be matched to a specific test setup rather than a fixed standard size.

Industries We Serve

IoT Device Testing

Know More

Telecommunication

Know More

Medical Devices

Know More

RF Isolation

Shielding Effectiveness

≥ 130 dB @ 20 MHz ~ 1 GHz
≥ 120 dB @ 3 GHz
≥ 120 dB @ 5 GHz
≥ 115 dB @ 6 GHz
≥ 110 dB @ 7 GHz
≥ 110 dB @ 8 GHz
≥100 db @ 12 GHz

The RF shield box exceeds minimum required isolation shielding performance across the tested frequency range, ensuring reliable and consistent RF testing performance.
